Description
The REV2 Controller, powered by bootmod3 DirectPWM and FlexRay™, is the first-of-its-kind motorsport ECU designed for high-performance BMW models. Engineered for seamless integration with the factory DME, this advanced controller features an IP66-rated waterproof enclosure and a mil-spec motorsport-grade wiring harness, ensuring unmatched durability and reliability.
Cutting-Edge Technology for Maximum Performance
With development dating back to 2019, the REV2 Controller represents a revolutionary step in vehicle tuning. It leverages FlexRay™, a high-speed, fault-tolerant communication protocol, to ensure robust and reliable data transfer between the DME and controller. Additionally, bootmod3 CustomROM V2 introduces DirectPWM, an innovative strategy that eliminates protocol overhead for unparalleled speed and precision in controlling key outputs.
Why Choose REV2 Controller?
- FlexRay™ Integration: Ensures ultra-fast and secure communication with the DME, eliminating the limitations of traditional CANBUS systems.
- DirectPWM Control: Enables seamless and direct signal transmission, enhancing performance and response time for Boost Control Solenoids and Sequential Port Injection.
- Plug-and-Play Installation: No standalone ECU tuning required—simply install and manage all settings via the bootmod3 Map Editor.
- Wireless Firmware Updates: Integrated WiFi for easy and hassle-free software updates via the bootmod3 app.
- Comprehensive Safety Features: bootmod3 CustomROM V2 enables over 40 customizable safety parameters, including ignition cut, injector cut, over-boost protection, and knock safety.
- Multi-Sensor Compatibility: Supports fuel pressure, ethanol content, coolant pressure, nitrous bottle pressure, exhaust gas temperature, turbine speed, methanol flow, and more.
Seamless Integration & Advanced Features
- DME-Controlled Tuning: The REV2 Controller is not a standalone ECU—all tuning is performed through the DME using bootmod3 CustomROM V2.
- Support for Ethanol Sensors: Directly connects to ethanol content analyzers, ensuring real-time ethanol content and fuel temperature monitoring.
- Expanded Output Capabilities: Enables sequential port fuel injection (up to 8 injectors), boost control solenoid operation, methanol/water injection, nitrous solenoid control, and fuel pump activation.
- Line Lock Feature: Fully integrates with the brake pedal and OEM steering wheel controls, eliminating the need for aftermarket switches.
What’s Included in the REV2 Controller Package?

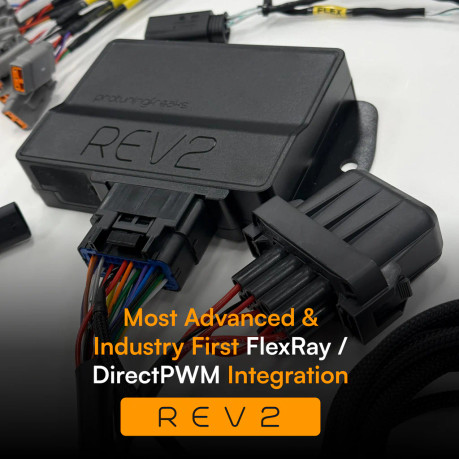

- REV2 Controller Board
- IP66 Polycarbonate Enclosure with Mounting Bracket
- Mil-Spec Race Harness
- Flex Fuel Sensor Sub-Harness (sensor sold separately)
- Pressure Sensor Sub-Harness (optional fuel pressure sensor available)
- Plug-and-Play MAP Sensor Harness for use with included 100psi (7 BAR) MAP sensor
Vehicle Compatibility
The REV2 Controller is designed for 2020+ BMW high-performance models, including:
- 2022+ BMW G80 M3 / M3 CS
- 2022+ BMW G82 / G83 M4 / M4 CS
- 2022+ BMW G87 M2
- 2020+ BMW F97 X3M / F98 X4M
REV2 Controller Requirements
- bootmod3 CustomROM V2 (mandatory)
- Cloned (fully programmable) DME or Femto-unlocked DME for bootmod3 CustomROM V2
Take your BMW M to the next level with the REV2 Controller—precision tuning, ultra-fast communication, and cutting-edge safety features in one game-changing package.
