Description

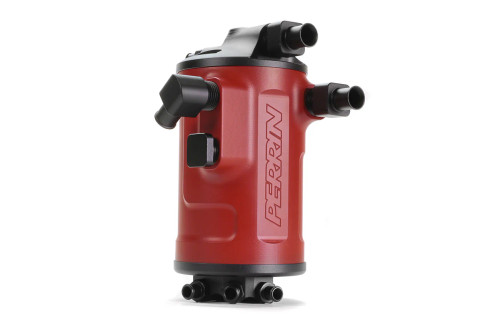

The PERRIN Air Oil Separator (AOS) for Subaru BRZ, Toyota GR86, Toyota 86, and Scion FR-S applications is designed to improve engine reliability and performance by removing oil vapors from crankcase blow-by before they enter the intake system. Built for Subaru FA20 and FA24 boxer engines, this system helps reduce carbon buildup, protect intake components, and maintain consistent combustion efficiency.
Unlike traditional catch cans that require frequent draining, the PERRIN AOS operates as a closed-loop system that captures oil particles and returns them safely to the engine. This eliminates routine maintenance while ensuring clean airflow into the intake manifold under all driving conditions.
The system uses advanced internal airflow separation technology, combining a swirling vortex effect with engineered internal passage geometry to efficiently separate oil from air and vapor. This reduces oil contamination in the intake tract, intercooler system, and combustion chamber, helping maintain optimal engine performance.
A key feature of the PERRIN AOS is its optimized placement design, which ensures proper engine bay fitment while maintaining clearance from aftermarket components such as strut braces, intake systems, and brake master cylinder supports.
Constructed from CNC-machined 6061-T6 aluminum and finished with a high-temperature ceramic coating rated over 500°F, the system is built for long-term durability, corrosion resistance, and heat protection. Aluminum fittings and stainless-steel hardware ensure secure, reliable installation.
FITMENT:
2013–2025 Subaru BRZ (all trims listed)
2016–2020 Scion FR-S (all trims listed)
2017–2020 Toyota 86 (all trims listed)
2022–2026 Toyota GR86 (all trims listed)
Key Features:
Removes oil vapors from crankcase blow-by
Reduces carbon buildup on intake valves
Improves long-term engine health and efficiency
Closed-loop oil return system (no draining required)
Advanced internal air/oil separation technology
Optimized fitment for boxer engine platforms
CNC-machined 6061-T6 aluminum construction
High-temp ceramic coated finish (>500°F rated)
Direct-fit installation with vehicle-specific bracket
Includes mounting hardware and installation kit
Specifications:
Application: Subaru BRZ / Toyota GR86 / 86 / FR-S (2013–2026)
Engine: FA20 / FA24 boxer engines
Material: CNC-machined 6061-T6 aluminum
Finish: High-temperature ceramic coating
System Type: Air Oil Separator (closed-loop oil return)
Installation: Bolt-on, application-specific kit
