Description

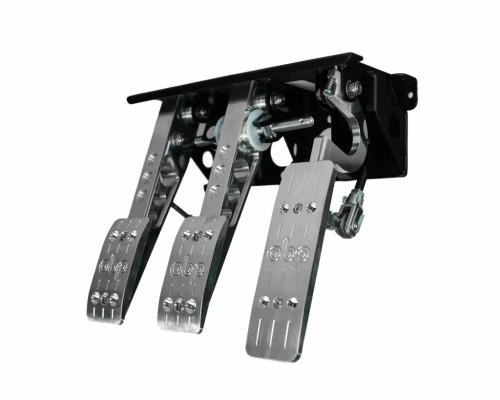

The OBP Motorsport Pro-Race V2 Top Mount/Underslung Bulkhead Fit 3 Pedal System is a high-performance pedal box engineered for maximum efficiency and control in competitive motorsport vehicles. Designed for top bulkhead installation, it provides drivers with precise operation of the brake, clutch, and accelerator pedals.
The system features CNC machined T6061 aircraft-grade aluminium pedals, adjustable in multiple positions to allow customizable pedal ratios (4.9:1 / 5.24:1) and ergonomic comfort. Oil-impregnated bronze bearings reduce friction and provide smooth, precise pedal movement.
The accelerator pedal includes two adjustable throttle stops and a sensitive return spring, allowing the driver to fine-tune pedal throw. It comes pre-fitted with throttle cable linkage and is Drive-By-Wire (DBW) compatible, allowing easy replacement with a linear potentiometer if required.
The 2mm powder-coated black mild steel cradle provides excellent rigidity and mounts directly to the bulkhead, with three rear mounting points suitable for most master cylinders. The system also includes an OBP Motorsport bias bar.
Product Features:
-
Fitment: Top bulkhead installation
-
Pedal ratio: 4.9:1 / 5.24:1
-
Weight: 3.3 kg (≈ 7.28 lbs)
-
CNC machined T6061 aluminium pedals for brake, clutch, and accelerator
-
Mild steel cradle construction with powder-coated black finish
-
Adjustable pedal pads for comfort and ergonomic positioning
-
Accelerator pedal with adjustable throttle stops and sensitive return spring
-
Drive-By-Wire (DBW) compatible
-
Oil-impregnated bronze bearings for smooth, low-friction operation
-
Bias bar included for master cylinder setup
-
Installation guide and fitment drawing included in product specification
Fitment Information:
Designed for top-mounted bulkhead installations, compatible with most brake and clutch master cylinders, and suitable for competitive rally, race, and track vehicles.
