IE Audi 4.0T EA824 ECU Tune | Fits C7/C7.5 S6 & S7

Unlock the performance potential of your Audi's twin-turbocharged V8 with the Integrated Engineering (IE) 4.0T EA824 Performance ECU Tune, designed for compatible Audi C7 and C7.5 S6 and S7 applications. Engineered to deliver substantial horsepower and torque gains, this performance software upgrade transforms engine response, acceleration, and overall driving performance while offering flexible calibration options for different fuel types and hardware configurations.

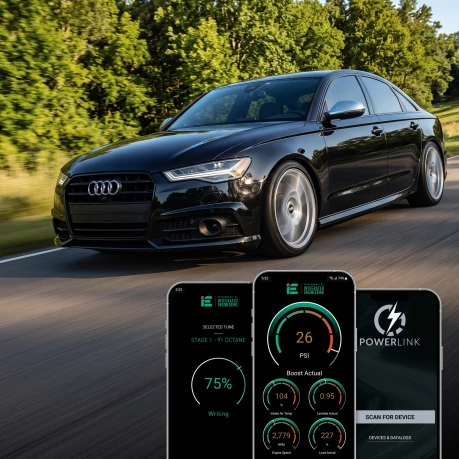

Featuring IE's innovative POWERlink Bluetooth tuning technology, the ECU tune allows compatible engine and transmission calibrations to be managed directly from an Apple or Android smartphone. The POWERlink device connects to the vehicle's OBD-II port, providing wireless access to tune installation, octane switching, stage upgrades, diagnostic functions, and live vehicle data monitoring.

The IE Stage 1 ECU Tune delivers advertised performance of up to 652 HP and 760 lb-ft of torque while retaining compatibility with factory engine and turbocharger hardware. For enthusiasts seeking additional performance, the available Stage 3 RS7 Turbo Upgrade calibration supports compatible factory RS7 turbochargers, delivering up to 719 HP and 768 lb-ft of torque with the appropriate supporting modifications and fuel.

Integrated Engineering also offers optimized ethanol calibrations, including E85 tuning with adaptive safeguards for supported ethanol concentrations between E60 and E85. Additional features include optional Exhaust Crackle and Ghost Cam functionality, increased launch-control torque, brake boosting, and revised engine speed limits.

Manufactured by Integrated Engineering, this tuning platform provides a comprehensive performance solution for Audi S6 and S7 owners seeking increased power, convenient mobile flashing, and a flexible upgrade path from factory turbochargers to an RS7 turbocharger configuration.

Key Features

• Brand: Integrated Engineering (IE)

• Product: Audi 4.0T EA824 Performance ECU Tune

• Part Number: IESOVP11

• Vehicle Applications: Audi S6 and S7 C7/C7.5

• Engine: 4.0L Twin-Turbocharged V8

• Stage 1 and Stage 3 RS7 turbocharger calibrations available.

• Advertised Stage 1 performance of up to 652 HP and 760 lb-ft of torque.

• Advertised Stage 3 performance of up to 719 HP and 768 lb-ft of torque.

• Bluetooth mobile flashing through the IE POWERlink platform.

• Compatible with supported Apple and Android smartphones.

• Direct OBD-II tuning access.

• Supports applicable 91-, 93-, 104-octane, and E85 fuel calibrations, depending on the selected stage.

• E85 calibration includes adaptive safeguards for supported E60–E85 ethanol concentrations.

• Matching IE DSG transmission tuning available.

• Increased engine boost pressure and optimized performance calibration.

• Optional Exhaust Crackle feature.

• Optional Ghost Cam idle feature.

• Supported features can be toggled through POWERlink.

• Increased launch-control torque for faster launches.

• Increased engine rev limiter with the appropriate transmission calibration.

• Removes supported factory road-speed limiters.

• Enables brake boosting for rolling launches.

• Cylinder deactivation disabled by default, with retention available upon request.

• Live engine gauge monitoring.

• Read and clear supported diagnostic trouble codes.

• Convenient switching between compatible octane calibrations.

• Stage upgrades available as supporting performance hardware is installed.

ECU Tuning Stages

Stage 1 ECU Tune

The IE Stage 1 ECU Tune is designed to maximize the performance potential of the factory Audi 4.0T engine and turbochargers without requiring additional engine hardware.

Advertised Stage 1 Performance:

• Up to 652 HP.

• Up to 760 lb-ft of torque.

Stage 1 increases boost pressure, optimizes engine calibration, and improves acceleration throughout the powerband.

The calibration is designed to operate with factory hardware while supporting compatible optional modifications such as an upgraded air intake, intercooler, heat exchanger, and cat-back exhaust.

Available Stage 1 fuel options include compatible 91-, 93-octane, and E85 calibrations.

Important: A matching IE DSG transmission tune is required for the Stage 1 ECU calibration.

Stage 3 RS7 Turbo Upgrade

For enthusiasts seeking additional performance, the IE Stage 3 RS7 Turbo Upgrade calibration is designed for compatible factory RS7 turbochargers installed on the Audi S6 or S7.

Advertised Stage 3 Performance:

• Up to 719 HP.

• Up to 768 lb-ft of torque.

The larger turbochargers provide an extended powerband, allowing the engine to sustain increased power toward redline while maintaining responsive boost delivery.

The Stage 3 calibration supports applicable pump-gas, ethanol, and race-fuel configurations, with maximum advertised performance achieved using the appropriate supporting hardware and fuel.

Stage 3 Highlights:

• Designed for compatible factory RS7 turbocharger upgrades.

• Extended powerband compared with the original S6/S7 turbocharger configuration.

• Strong power delivery toward redline.

• Minimal increase in boost lag, according to IE.

• Supports applicable 91- and 93-octane pump-gas configurations.

• Additional performance potential with compatible ethanol and race-fuel calibrations.

• Requires the correct Stage 3 hardware and matching transmission calibration.

Stage upgrades are available through IE's tuning platform, subject to current manufacturer pricing and upgrade terms.

E85 Ethanol Tuning

Integrated Engineering includes ethanol tuning options designed to take advantage of ethanol's cooling characteristics and resistance to engine knock.

The supported E85 calibrations incorporate adaptive safeguards for ethanol concentrations between approximately E60 and E85.

Full E85 is recommended by IE for achieving the highest advertised ethanol performance output.

Important: Use only the ethanol calibration intended for your exact tuning stage and hardware configuration. Confirm fuel quality, ethanol concentration, and any additional fuel-system requirements before installation.

Optional Exhaust Crackle & Ghost Cam Features

The IE Audi 4.0T ECU Tune includes optional sound-enhancement features for supported tuning configurations.

Exhaust Crackle adds a motorsport-inspired exhaust sound during applicable driving conditions.

Ghost Cam introduces a distinctive lopey idle characteristic, giving the twin-turbocharged V8 a more aggressive sound.

Both features can be enabled or disabled through the supported IE POWERlink interface.

Actual sound characteristics depend on the vehicle's exhaust configuration, selected calibration, and operating conditions.

DSG Transmission Tuning

The matching IE DSG transmission tune is an important supporting component for the Audi 4.0T performance calibration.

It is required for the listed Stage 1 ECU tuning configuration and supports the increased engine output through compatible transmission calibration changes.

With the appropriate transmission tune, the engine rev limiter can be increased to approximately 6,800 RPM.

Confirm the exact transmission type, TCU software version, and current IE transmission-tuning support before purchasing.

Hardware Upgrade Guide

Stage 1 Requirements

• IE DSG Tune: Required.

• Air Intake: Optional; highly recommended for additional performance.

• Intercooler: Optional; recommended for maximum performance and improved thermal management.

• Heat Exchanger: Compatible supporting cooling upgrade.

• Cat-Back Exhaust: Optional.

• X-Pipe and Midpipes: Optional.

• Aftermarket Downpipes: Not compatible with the standard Stage 1 calibration.

• HPFP Upgrade: Not compatible with the standard Stage 1 configuration.

IE states that a compatible upgraded intake system can provide up to an additional 40 HP over the stock intake configuration under the applicable tested conditions.

Stage 3 Requirements

Stage 3 requires compatible factory RS7 turbochargers and the corresponding IE Stage 3 calibration.

Additional supporting hardware and fuel-system requirements depend on the selected fuel map and vehicle configuration. Confirm the complete Stage 3 hardware requirements with Integrated Engineering before ordering.

Technical Specifications

• Manufacturer: Integrated Engineering

• Manufacturer Part Number: IESOVP11

• Product Type: Performance ECU Tuning Software

• Engine Platform: Audi EA824

• Engine Configuration: 4.0L Twin-Turbocharged V8

• Supported ECU Stages: Stage 1 and Stage 3 RS7 Turbo Upgrade

• Advertised Stage 1 Maximum Output: 652 HP / 760 lb-ft

• Advertised Stage 3 Maximum Output: 719 HP / 768 lb-ft

• Fuel Options: Applicable 91, 93, 104 octane and E85 calibrations

• Ethanol Adaptation Range: E60–E85 for supported ethanol files

• Flashing Platform: IE POWERlink Bluetooth

• Connection: Vehicle OBD-II port

• Mobile Compatibility: Supported Apple and Android devices

• Transmission Tuning: Matching IE DSG calibration available

• Supported Increased Rev Limit: Approximately 6,800 RPM with the required compatible transmission calibration

Performance figures are manufacturer-advertised and depend on the selected tune, fuel, supporting hardware, vehicle condition, and operating environment.

Fitment

Audi S6 C7 – 4.0T Twin-Turbo V8

Audi S6 C7.5 – 4.0T Twin-Turbo V8

Audi S7 C7 – 4.0T Twin-Turbo V8

Audi S7 C7.5 – 4.0T Twin-Turbo V8

Fitment Note: Exact model-year coverage was not provided in the supplied product information. Confirm compatibility with your vehicle's model year, engine code, ECU software, transmission configuration, and selected IE tuning stage before ordering.

Do not assume compatibility with Audi RS6, RS7, A6, A7, S8, or other 4.0T applications unless explicitly confirmed by Integrated Engineering.

POWERlink, Licensing & Software Updates

The IE POWERlink platform provides convenient access to compatible tuning and vehicle-monitoring functions.

• Supports flashing through compatible Apple and Android smartphones.

• Provides access to supported fuel-map switching and stage upgrades.

• Allows supported diagnostic functions and live vehicle data monitoring.

• One compatible POWERlink flashing device can be used with up to five different vehicle VINs.

• Each vehicle requires its own separately purchased tuning license.

• Once applied to a vehicle's ECU, the tuning license is permanently registered to that vehicle.

• Tune licenses are not transferable between unrelated vehicles.

• Transfer with the original vehicle may be permitted when ownership changes, subject to IE's current terms.

• IE states that purchased tunes include applicable tune revisions, new supported octane files, standard feature updates, and software updates without additional charges.

Confirm current POWERlink compatibility, package contents, activation requirements, and licensing terms before purchasing.

Important Tuning Compatibility & Disclaimers

• Verify that your exact vehicle's ECU and TCU software versions are supported.

• A matching IE DSG transmission tune is required for the listed Stage 1 configuration.

• Use only calibrations developed for your exact engine, turbocharger, fuel, and supporting hardware.

• Stage 3 requires the appropriate RS7 turbocharger upgrade and matching performance components.

• Confirm fuel-system compatibility before using ethanol or race-fuel calibrations.

• Increased engine output can place additional stress on the engine, turbochargers, transmission, and drivetrain.

• ECU and TCU tuning may affect factory warranty coverage, emissions compliance, and vehicle reliability.

• Certain aftermarket exhaust and downpipe configurations may be restricted to motorsport applications.

• Confirm all applicable local vehicle and emissions regulations before installation.
