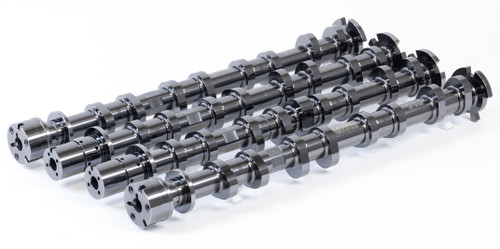

GSC P-D R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang 5.0) gsc7073R2

GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang GT)

The GSC R2 Camshaft Set for the Gen 3 5.0L Coyote is purpose-built for ported-head, track-focused engines that demand maximum airflow utilization and sustained high-RPM performance. This is a true race-oriented profile, engineered for high-flow cylinder heads and aggressive combinations that spend their life at the top of the tach.

Designed to pull hard through a wide 5,800–8,500 RPM powerband with peak output around 8,100 RPM, the R2 profile delivers strong area under the curve while maintaining stability at elevated engine speeds. Compared to S1 and S2 profiles, the R2 is optimized specifically for ported Gen 3 heads, where increased airflow can be fully exploited.

Engineered for High-Flow Combinations

Every R2 cam profile is modeled using real ported Gen 3 head flow data and factory rocker geometry to ensure precise valve motion in high-lift, high-RPM environments. The result is a camshaft that supports serious track use—road course, drag, or competition builds—where power delivery above midrange is critical and drivability takes a back seat to outright performance.

Variable Cam Timing (VCT) remains compatible, though tuners typically manage cam phasing within a tighter window to optimize stability and maximize usable power at high RPM.

Direct Injection Compatibility Retained

Despite its race-focused intent, the R2 camshaft set preserves OEM high-pressure fuel pump (HPFP) lobe geometry. Stroke and timing remain unchanged, ensuring reliable operation of factory and most upgraded direct injection fuel pumps—an essential consideration for high-output Gen 3 Coyote builds.

Built for the Track

Each camshaft is forged from U.S.-sourced bearing-grade steel, CNC-machined to tighter-than-OEM tolerances, and finished with BLACK ISE surface treatment to reduce friction and extend service life under extreme conditions. These cams are built to withstand sustained high-RPM operation and repeated track abuse.

Key Features & Highlights

• Race-focused camshaft set for ported-head Gen 3 Coyote builds

• Optimized for high-flow ported cylinder heads

• Broad high-RPM powerband with strong top-end

• Powerband: 5,800–8,500 RPM

• Peak horsepower target: ~8,100 RPM

• Compatible with pump gas, race fuel, and E85/E90

• Upgraded valve springs required (GSC springs recommended)

• Titanium retainers strongly recommended

• VCT compatible with tuner-managed phasing window

• OEM DI fuel pump lobe geometry retained

• Made in the USA from U.S.-sourced billet

Fuel Compatibility

• Pump Gas

• Race Fuel

• E85 / E90

Valve Spring Requirements

• Upgraded valve springs required

• Use GSC-matched valve springs

• Titanium retainers recommended

• Springs must be selected to match the intended rev limit

Fitment

• Vehicle: Ford Mustang GT

• Engine: 5.0L Gen 3 Coyote V8

• Model Years: 2018–2023

• Cylinder Heads: Ported Gen 3 heads required

• Drivetrain: RWD

• Transmission: Manual & Automatic

Tuning & Installation Notes

• ECU tuning required

• Always verify piston-to-valve clearance with your specific pistons, heads, and gasket stack

• With OEM pistons and deck heights, full phaser range is typically usable, but verification is mandatory

• Verify installed valve spring height and coil bind

• Follow GSC installation sheet for torque sequences and procedures

• Inspect HPFP follower and prime oiling and fuel systems during reassembly
