Description
Unleash Extreme Power with Garrett G-Series Technology

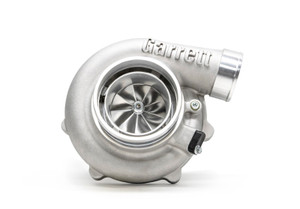

The Garrett G45-1475 Super Core is a high-performance turbocharger designed for enthusiasts and professionals seeking maximum power and efficiency. Featuring advanced G-Series turbine aerodynamics, this turbo delivers a 14% increase in flow compared to the GTX45R, offering unparalleled performance for high-output applications. With cutting-edge technology like dual ceramic ball bearings, lightweight construction, and integrated speed sensor and pressure ports, the G45-1475 is built for durability and precise tuning.
Important Note: Exceeding the maximum turbocharger speed of 114krpm may result in damage. Use of a speed sensor (sold separately) is highly recommended to monitor shaft speed during operation.
Key Features
- Advanced Compressor Design: 79mm inducer and 98mm exducer with 65 trim for optimal flow and boost response.
- Enhanced Turbine Technology: Inconel turbine wheel with an 89mm inducer flows up to 56 lbs/min for superior power delivery.
- Dual Ceramic Ball Bearings: Provide exceptional durability and efficiency under extreme conditions.
- G-Series Aerodynamics: Delivers 14% higher flow compared to previous GTX45R models.
- Lightweight Aluminum Backplate: Reduces overall weight without compromising strength.
- Integrated Ports: Fully machined speed sensor and pressure ports enable precise monitoring and tuning.
- Water Fittings Included: Simplifies installation and enhances reliability.
- Turbine Housing Options: Stainless steel turbine housings with a T4 divided inlet available separately.
Performance Highlights
- Supports up to 1475 horsepower (flywheel potential).
- Compatible with high-performance vehicles requiring extreme power outputs.
- Requires proper tuning and calibration for optimal results.
Specifications
- Compressor Inducer: 79mm
- Compressor Exducer: 98mm
- Compressor Trim: 65
- Turbine Inducer: 89mm
- Flow Capacity: Up to 56 lbs/min
- Maximum Turbo Speed: 114,000 RPM
What’s Included
- Garrett G45-1475 Super Core
- Water fittings for installation
Important Warnings
- Exceeding the maximum speed of 114krpm can cause severe damage. Use a speed sensor (sold separately) to monitor turbocharger shaft speed.
- Performance outcomes depend on vehicle modifications and proper tuning/calibration. Horsepower estimates are based on compressor map choke flow and represent potential flywheel horsepower.
Applications
- High-performance builds requiring extreme airflow and horsepower.
- Suitable for race cars, drag applications, and extreme tuning setups.
Why Choose the Garrett G45-1475?
The Garrett G45-1475 Super Core sets a new standard for high-performance turbochargers. With cutting-edge aerodynamics, durable construction, and superior flow capacity, it’s the perfect solution for enthusiasts aiming to maximize power and efficiency.
