Description

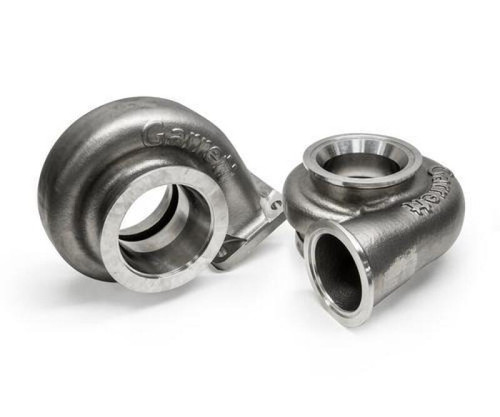

The Garrett G38/GXR38 Turbine Housing Kit O/V V-Band / V-Band 0.85 A/R (Part Number 757707-0037) is designed for high-performance turbocharger applications requiring efficient exhaust flow, fast response characteristics, and reliable operation under demanding conditions. The Garrett G38 turbocharger platform was developed for performance engines ranging from 2.0L to 5.5L, making it suitable for a wide range of racing, drag, and high-output engine builds.
The G38 turbine section utilizes an advanced Inconel turbine wheel featuring a 74 mm inducer and 66 mm exducer, paired with durable stainless steel turbine housings available in V-Band and T4 divided configurations. Multiple A/R options allow the G38 platform to be optimized for different power goals, boost response requirements, and engine setups.
The G38 compressor lineup includes the G-XRace GXR38-64 with a 64 mm compressor and hose or V-Band compressor outlet configurations, as well as the G-Series II G38-1000 featuring a 62 mm compressor with a hose compressor outlet. These compressor options provide increased pressure ratio capability, improved airflow efficiency, reduced weight, and advanced turbocharger monitoring compatibility.
The 0.85 A/R turbine housing configuration provides an excellent balance between turbo response and high-flow performance, making it ideal for applications where quick spool characteristics and strong top-end power are required.
Features:
- Designed for Garrett G38 and GXR38 turbocharger platforms
- Supports high-performance engine applications from 2.0L to 5.5L engine displacements
- O/V V-Band inlet and V-Band outlet turbine housing configuration
- 0.85 A/R turbine housing ratio for optimized boost response and airflow balance
- Constructed from durable stainless steel for long-term performance and reliability
- Features an Inconel turbine wheel with a 74 mm inducer and 66 mm exducer
- G-Series II compressor aerodynamics provide increased boost capability and improved power potential
- High-flow turbine design helps improve exhaust efficiency and turbocharger performance
- Lightweight aluminum backplate reduces overall turbocharger weight
- Fully machined integrated sensor port allows accurate turbocharger monitoring and tuning
- Engineered to OEM-level standards for durability and consistent performance
- Compatible with advanced Garrett monitoring systems and speed sensor kits
- G-XRace GXR38-64 supports both V-Band and hose compressor outlet configurations
- G-XRace GXR38-64 is designed for XWorld drag racing applications and classes with a 64.9 mm compressor inducer limit
- G-XRace GXR38-64 provides outline interchangeability and a direct upgrade path from GXR45-73 for XFWD class applications
- Compatible with G-Smart Module/App PN 923586-0003
- Compatible with Speed Sensor Kit PN 781328-0003
- Compatible with Speed Sensor Kit PN 781328-0004
Fitment / Application Information:
- Garrett G38 turbocharger platform applications
- Garrett GXR38 turbocharger platform applications
- High-performance racing and motorsport applications
- Engine displacement range: 2.0L to 5.5L
- Designed for custom turbocharged engine builds requiring Garrett G-Series turbocharger components
Specifications:
- Manufacturer: Garrett
- Part Number: 757707-0037
- Product Type: Turbine Housing Kit
- Turbocharger Platform: G38 / GXR38
- Turbine Housing Configuration: O/V V-Band / V-Band
- Turbine Housing A/R Ratio: 0.85
- Engine Displacement Range: 2.0L - 5.5L
- Turbine Wheel Material: Inconel
- Turbine Wheel Inducer Size: 74 mm
- Turbine Wheel Exducer Size: 66 mm
- Turbine Housing Material: Stainless Steel
- Available Turbine Housing Configurations: V-Band, T4 Divided
- Available A/R Options: 0.85, 0.95, 1.06
- Compressor Reference: G-XRace GXR38-64
- G-XRace GXR38-64 Compressor Size: 64 mm
- G-XRace GXR38-64 Compressor Outlet Options: Hose, V-Band
- Compressor Reference: G-Series II G38-1000
- G-Series II G38-1000 Compressor Size: 62 mm
- G-Series II G38-1000 Compressor Outlet: Hose
- Compressor Inducer Class Limit: 64.9 mm
- Compatible Monitoring Module: G-Smart Module/App PN 923586-0003
- Compatible Speed Sensor Kit: PN 781328-0003 Street Kit with Gauge
- Compatible Speed Sensor Kit: PN 781328-0004 Pro Kit without Gauge
Upgrade your Garrett G38 or GXR38 turbocharger system with the Garrett 757707-0037 Turbine Housing Kit for improved airflow management, turbo response, and reliable performance in high-output racing and performance applications.
