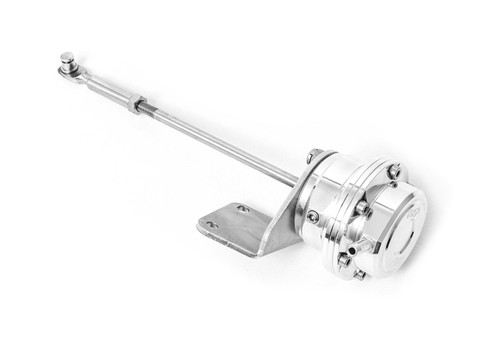

Forge Motorsport Turbo Actuator for VW Golf Mk6 2.0 Litre TSi Engines with IHI Turbo

$257.29
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

Description

Upgrade your VW Golf Mk6 2.0L TSI engine’s boost control and turbo response with the Forge Motorsport Turbo Actuator, engineered specifically for IHI turbos with bolt-on actuator housings and removable flapper arms. This actuator is not compatible with IHI turbos that have welded actuators or riveted rods—please inspect your turbo housing before ordering.

Designed for performance enthusiasts and tuners alike, this actuator provides precise boost management, enhanced turbo response, and reliable operation under demanding conditions.


Key Features:

  • Precision-machined from 6026-grade billet aluminum

  • Green spring installed by default, suitable for or slightly above factory boost

  • Vehicle- and turbo-specific fitment for easy integration

  • Diaphragm sealed internals (default) or optional piston-sealed internals

  • Nomex-reinforced flurosilicone diaphragms for durability

  • Laser-cut stainless steel mounting brackets (where applicable)

  • Built to order in the UK

  • Lifetime warranty (conditions apply)

  • Spring tuning kits available for custom boost levels (sold separately)


Boost Control and Customization:

This actuator allows you to fine-tune boost pressure to match your vehicle’s performance needs. The included spring is designed for OEM or slightly elevated boost, but stronger springs are available to support tuned applications requiring increased pressure. We recommend contacting us if you're targeting specific boost levels or running a tuned ECU.


Compatibility Notes:

This actuator is compatible only with IHI turbos that meet the following criteria:

  • Actuator bolted to the turbine housing

  • Rod arm removable from the flapper arm

It will not fit turbos with:

  • Actuator welded to the housing

  • Rod end riveted to the wastegate arm


Fitment:

Fits the following models with compatible IHI turbo configuration:

  • 2013 Volkswagen Golf R 2.0L

  • 2011–2015 Volkswagen GTI Base 2.0L

  • 2015 Volkswagen GTI Autobahn, S, SE 2.0L

  • 2014 Volkswagen GTI Wolfsburg Edition 2.0L


What’s Included:

  • 1 x Forge Motorsport FMACVAG08 Turbo Actuator

  • 1 x Forge Motorsport Decal

Note: This actuator comes with the green spring pre-installed. If you require the FMPACTUN spring tuning kit, select the Diaphragm Type 2, 049 option.


Important Disclaimer:

Forge Motorsport cannot guarantee compatibility with all vehicle setups, especially those with aftermarket or heavily tuned engine management systems. While this actuator is capable of handling higher boost pressures, it is the responsibility of the installer or tuner to ensure the engine and components can support the requested performance level. Professional installation and tuning are strongly recommended.
