Description
Improve brake heat management and help protect your calipers during aggressive driving with the FactionFab Titanium Front Brake Shim Set. Designed for applications using FMSI D1001 brake pads, these precision-made titanium shims create a thermal barrier between the brake pad and caliper piston, helping reduce heat transfer into the caliper and brake fluid.
During repeated hard braking, such as track days, autocross, or spirited driving, substantial heat can build up within the braking system. Excessive heat transferred into the caliper can increase brake fluid temperatures and contribute to brake fade. FactionFab Titanium Brake Shims help address this issue by using titanium's low thermal conductivity to reduce heat transfer from the brake pad into the caliper piston.

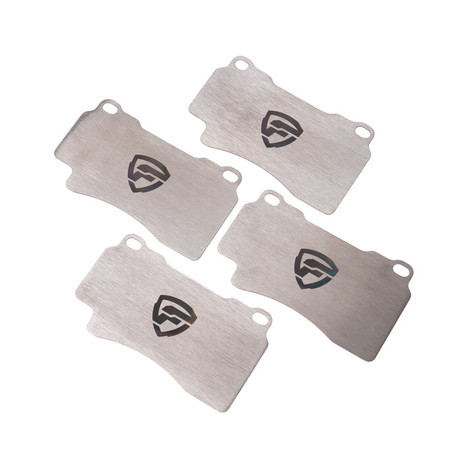

Each shim is manufactured from 6AL-4V / Grade 5 Titanium and measures 1.0mm thick, providing a durable thermal barrier while maintaining a straightforward installation between the brake pad and caliper piston. The thicker 1.0mm construction also provides additional insulation compared with thinner 0.5mm shim designs.
With improved thermal isolation, these shims can help maintain more consistent brake performance during repeated high-temperature braking and may help extend brake pad life. They are an excellent upgrade for performance-oriented Subaru STI owners looking for additional brake heat protection without replacing the factory calipers.
Key Features
- 4 titanium brake shims included
- Designed for 4-piston Brembo front brake applications
- Made from 6AL-4V / Grade 5 Titanium
- Titanium construction provides low thermal conductivity compared with steel
- 1.0mm thickness for enhanced thermal insulation
- Creates a thermal barrier between the brake pad and caliper piston
- Helps reduce heat transfer into the caliper and brake fluid
- Helps maintain more consistent braking performance during repeated hard braking
- Can help reduce the risk of heat-related brake fade
- May help extend brake pad life during demanding use
- Suitable for track days, autocross, and performance driving
- Designed around FMSI D1001 brake pad applications
- May qualify for many SCCA and NASA competition classes; always verify current class rules before competition use
Fitment
These FactionFab Titanium Front Brake Shims fit many applications using FMSI D1001 brake pads, including:
- 2004-2017 Subaru STI
- 2017+ Honda Civic Type R
- 2003-2014 Mitsubishi Lancer Evolution
- 2007-2014 Ford Mustang with Brembo Package
- 2004-2007 Volvo S60 R
- 2004-2007 Volvo V70 R
- 2009 Pontiac G8 GXP
- 2015-2017 Dodge Viper
- 2004-2007 Cadillac CTS-V
- 2013-2017 Cadillac ATS with Brembo Package
- 2007-2011 Cadillac STS
- 2010-2016 Hyundai Genesis Coupe with Brembo Package
- 2014-2018 Chevrolet Camaro with Brembo Package
- 2012-2015 Buick Regal GS
Specifications
- Material: 6AL-4V / Grade 5 Titanium
- Thickness: 1.0mm
- Quantity: 4 shims
- Application: Front brakes
- Pad Type: FMSI D1001
- Brake System: 4-Piston Brembo applications
Ideal for Performance and Track Use
The FactionFab Titanium Front Brake Shim Set is a simple and effective way to improve brake thermal management without changing your calipers or brake pads. By reducing the amount of heat transferred from the pad into the caliper piston, these shims help provide additional protection during repeated high-temperature braking.
For 2004-2017 Subaru STI owners and other compatible vehicles, this is a practical brake upgrade for drivers who demand greater thermal consistency during autocross, track sessions, and aggressive street driving.
Note: Always verify brake pad shape and FMSI number before ordering. Competition regulations can change, so check the current SCCA and NASA rules to confirm eligibility for your specific class.
