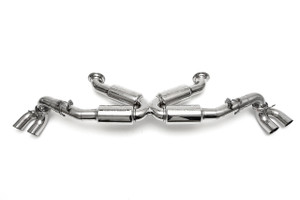

Fabspeed Audi R8 V10 Valvetronic Supersport X-Pipe Exhaust System (2016 - 2018) - FS.AUD.R817V10.VLV

Experience the pinnacle of performance and sound with Fabspeed's Valvetronic Supersport X-Pipe Exhaust System for your Audi R8 V10. Designed to deliver maximum power gains and an aggressive exhaust note at the push of a button, this system enhances your driving experience with over 53 wheel horsepower (whp) and 47 ft/lbs of torque.

Our engineers aimed to craft an exceptional exhaust for an outstanding car. This system unleashes the full unmuffled roar of the 5.2L V10 while retaining civility for daily driving. The system utilizes the factory exhaust valve controls, eliminating the need for additional valve controller installation.

VALVES CLOSED: Exhaust gases flow through Fabspeed's signature 63.5mm Quad-Resonated X-Pipe, smoothing out exhaust pulses for a sophisticated and exotic note. Ideal for cruising or long drives, the tone is refined and pleasant.

VALVES OPEN: With valves open, exhaust gases flow freely through 70mm dump tubes, producing an aggressive scream. The full fury of the Audi V10 is unleashed, accompanied by an intoxicating barrage of pops and crackles upon deceleration and downshifting. This system must be heard and felt to be fully appreciated.

HELICAL VALVES: We use Helical Valves for their unmatched quality, proven by OEM manufacturers like Porsche, McLaren, Ferrari, and Lamborghini. These valves offer increased reliability with high-temperature bearings and a cast stainless steel valve body with stiffening ribs for ultimate durability.

FEATURES:

• Vehicle Fitment: Fits Audi R8 V10 models (2016-2018).
• Valved Catback Exhaust: Fully controllable system includes a quad-resonated center X-Pipe section for volume control when valves are closed. Open the valves for maximum sound and power.
• Performance Gains: Adds 53 whp and 47 ft/lbs of torque at 5850 RPM with ECU Tune by channeling exhaust gases directly out the back.
• Weight Reduction: Saves 30 lbs from the rear of the vehicle compared to the factory rear muffler system.
• High-Quality Construction: Made from 14-16ga T304L stainless steel tubing for maximum power and durability, built in-house at Fabspeed.
• Easy Installation: Direct bolt-on installation with no cutting or welding required.
• Lifetime Warranty: All Fabspeed performance products are backed by the Fabspeed Lifetime Warranty.

VALVETRONIC EXHAUST / CONTROLLER NOTES: The actuation of the valves in the R8 is controlled by the vehicle depending on throttle conditions and driving mode. As an additional option, we offer a Valvetronic Controller Kit, providing full control of valve functionality with the press of a button.

Installation Instructions:

1. Preparation:

   • Ensure the vehicle is on a stable, level surface.
   • Allow the exhaust system to cool completely.
   • Gather all necessary tools and equipment.

2. Removal of Factory Exhaust:

   • Locate and remove the bolts securing the factory exhaust system.
   • Carefully detach the exhaust system from the vehicle and set it aside.

3. Installation of Supersport X-Pipe:

   • Position the Fabspeed Valvetronic Supersport X-Pipe in place of the factory exhaust.
   • Secure the system using the provided installation hardware.
   • Ensure all connections are tight and secure.

4. Final Checks:

   • Double-check all connections and hardware for tightness.
   • Start the vehicle and inspect for any exhaust leaks.
   • Test drive to ensure proper installation and performance.
