Description

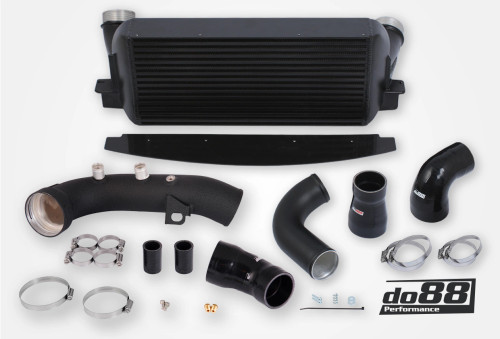

Maximize your BMW's performance with the do88 BigPack for 135i, 335i, and 35i N55 models (2010-2013). This all-in-one package includes the ultimate upgrade for your cooling and airflow system, featuring the do88 performance intercooler, charge pipe kit, and turbo outlet hose. Designed for high horsepower goals, this kit delivers significant improvements in power, airflow, and reliability. Ideal for both modified and non-modified vehicles, this BigPack is essential for anyone pushing their engine to the limit.
Key Features:
- Larger Core Volume: The do88 intercooler core is 12,517 cm³ larger than the OEM version (15,517 cm³ vs. 6,933 cm³), providing an impressive 124% increase in cooling capacity.
- Increased Frontal Cooling Area: With 1,151 cm² vs. 658 cm², this upgrade offers a remarkable 75% larger surface area for cooling.
- Better Airflow: Airflow at 0.15 bar (2.18 psi) pressure drop increases to 498 CFM (from 354 CFM), delivering 41% higher airflow for improved performance.
- Substantial Power Gain: Expect a peak power gain of 13 hp when installed on a 335xi N55 with a Stage 1 tune.
- Lower Post-Intercooler Air Temperature: Achieve a 15°C lower air temperature (43°C vs. 58°C) under the same conditions, as measured on a 335xi N55.
- Durable Construction: The intercooler features CAD-designed, flow-optimized cast end tanks, and an all-aluminum construction, combining maximum cooling efficiency with the lowest possible pressure drop.
- Turbo Outlet Hose: Reinforced with 4 layers of high-temperature aramid fiber, the silicone turbo outlet hose provides exceptional durability and strength.
- Charge Pipe Kit: Includes 3” (76mm) mandrel-bent seamless aluminum pipes with CNC machined throttle body flanges and custom silicone hoses capable of handling high pressure and temperatures.
- Methanol Injection Ports: The charge pipe is equipped with two 1/8-27 NPT methanol injection connections and blanking plugs for flexibility.
- Optimized for Performance: This kit significantly improves cooling efficiency and airflow, enabling your car to handle higher power outputs and intense usage.
The do88 BigPack replaces everything from the turbocharger outlet to the throttle body, ensuring a dramatic improvement in performance and reliability. Whether you're upgrading after a tune or preparing for high-performance use, this kit unlocks your car’s full potential.
Fitment:
- BMW 1 Series (E82, E88)
- Model Years: 2010-2013
- Model: 135i / 135is
- Engine: N55
- BMW 3 Series (E90, E91, E92, E93)
- Model Years: 2010-2013
- Model: 335i / 335iX
- Engine: N55
- BMW X1 (E84)
- Model Years: 2012-2015
- Model: 35i
- Engine: N55
