Description

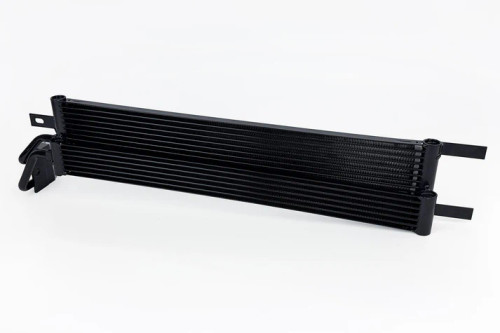

The CSF High-Performance Transmission Oil Cooler is the ultimate upgrade for Jeep Wrangler JL (2018–2025) and Gladiator JT (2020–2025) owners who demand more from their vehicles. Whether rock crawling, overlanding, or towing, excessive heat can limit performance and shorten transmission life. This advanced CSF system is engineered to keep transmission temperatures in check under the most demanding conditions.
While the factory transmission cooler is undersized for heavy-duty use, the CSF cooler provides a significant improvement with its dual-pass design, larger core, and increased fluid capacity. Built using CSF’s proprietary AC Condenser Technology and Super-High Pressure 16mm 10-Channel Microtube architecture, this cooler dramatically reduces transmission temperatures and prevents overheating.
Constructed from 100% TIG-welded aluminum with OEM-style fittings, the CSF cooler offers a perfect drop-in fit that installs in just 2–3 hours. With 34% more core volume and 68% more fluid capacity than the factory unit, it’s ideal for towing, off-road adventures, or daily driving. Finished in black for an OEM+ look, this cooler combines performance, reliability, and durability.
Key Features:
-
34% larger core volume and 68% more fluid capacity than OEM
-
Dual-pass core vs. factory single-pass design
-
Double the number of cooling tubes and fin rows compared to factory
-
Super-High Pressure 16mm 10-Channel Microtube architecture
-
19 rows of 5mm tall multi-louvered fins for maximum cooling surface area
-
100% TIG-welded aluminum construction
-
Black finish for an OEM+ appearance
-
Plug-and-play drop-in fit, no modifications required
-
OEM-style inlet/outlet connections
-
2-year limited warranty
Technical Specifications:
-
Core Rows: 2 (vs. OEM 1)
-
Cooling Tubes: 5 front + 12 back (vs. OEM 8 total)
-
Cooling Fin Rows: 6 front + 13 back (vs. OEM 9 total)
-
Fin Height: 5mm (vs. OEM 8mm)
-
Core Thickness: 16mm front + 16mm back (vs. OEM 19mm)
-
Material: All-aluminum construction
-
Installation Time: 2–3 hours
-
Finish: Black OEM+ look
Vehicle Fitment:
-
2018–2025 Jeep Wrangler JL – Turbocharged MHEV 2.0L L4
-
2018–2025 Jeep Wrangler JL – Turbocharged 2.0L L4
-
2020–2023 Jeep Wrangler JL – Turbocharged Diesel 3.0L V6
-
2018–2025 Jeep Wrangler JL – 3.6L V6
-
2020–2023 Jeep Wrangler JL – MHEV 3.6L V6
-
2020–2025 Jeep Gladiator JT – 3.6L V6
-
2021–2023 Jeep Gladiator JT – Turbocharged Diesel 3.0L V6
Protect your transmission and push your Jeep Wrangler JL or Gladiator JT further with CSF’s High-Performance Transmission Oil Cooler—engineered for serious off-roaders, overlanders, and tow rigs who demand uncompromising cooling performance.
