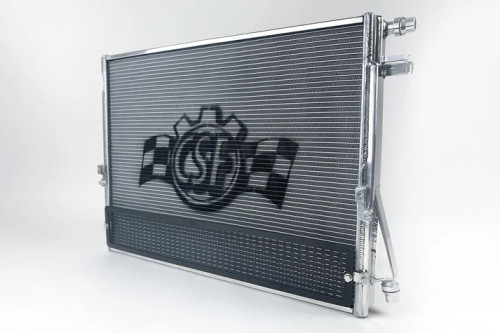

The CSF A90 Supra / BMW G-Series High-Performance Heat Exchanger with Rock Guard (CSF #8154) is engineered to eliminate one of the most common issues with the 2nd Gen B58 engine: rapid heat soak in the liquid-cooled charge air cooler system. Under demanding driving conditions, stock systems often allow intake air temperatures (IATs) to spike, forcing the ECU to cut power or even send the car into limp mode.
CSF developed this solution after seeing Supra racecars struggle with overheating at competitive track events. The upgraded CSF heat exchanger significantly reduces IATs, accelerates heat soak recovery, and prevents power loss—making it a must-have for tuned and turbo-upgraded applications.
Compared to the factory 25mm single-row unit, CSF’s design features the industry’s largest 2-row 68mm core with exclusive B-Tube technology. Despite the larger size, a unique tank design ensures compatibility with OEM mounting locations. It also includes billet transmission cooler mounts and a protective rock guard for improved airflow and durability.
This drop-in, plug-and-play cooling upgrade not only protects your engine from limp mode but also enhances performance across both street and track driving.
Key Features:
-
Significantly reduces intake air temperatures (IAT) for maximum performance with faster heat soak recovery.
-
Improves airflow to the cooling system, lowering both coolant and engine oil temps.
-
2-row, 42mm ultra-high-performance core with 6.5mm tall multi-louvered fin and CSF B-Tube technology.
-
CNC-machined mounting brackets and OEM-style quick-connect inlet/outlet.
-
100% all-aluminum TIG-welded construction.
-
Includes industry-exclusive rock guard and transmission oil cooler mounting kit.
-
Direct drop-in fit with OEM system.
-
Smooth satin finish.
-
Backed by CSF’s 2-year limited warranty.
-
Tested and proven with CSF’s global R&D network including leading time attack teams, tuners, and turbo kit manufacturers.
Vehicle Fitment
BMW
-
2019–2022 BMW G2X 330i – Turbocharged 2.0L L4
-
2019–2022 BMW G2X 330i xDrive – Turbocharged 2.0L L4
-
2021–2025 BMW G2X 430i – Turbocharged 2.0L L4
-
2022–2025 BMW G2X 430i Gran Coupe – Turbocharged 2.0L L4
-
2021–2025 BMW G2X 430i xDrive – Turbocharged 2.0L L4
-
2022–2025 BMW G2X 430i xDrive Gran Coupe – Turbocharged 2.0L L4
-
2023–2025 BMW G42 M240i – Turbocharged 3.0L L6
-
2022–2025 BMW G42 M240i xDrive – Turbocharged 3.0L L6
-
2020–2025 BMW G2X M340i – Turbocharged 3.0L L6
-
2020–2025 BMW G2X M340i xDrive – Turbocharged 3.0L L6
-
2021–2025 BMW G2X M440i – Turbocharged 3.0L L6
-
2024–2025 BMW G2X M440i Gran Coupe – Turbocharged 3.0L L6
-
2021–2025 BMW G2X M440i xDrive – Turbocharged 3.0L L6
-
2022–2025 BMW G2X M440i xDrive Gran Coupe – Turbocharged 3.0L L6
-
2019–2022 BMW G29 Z4 – Turbocharged 2.0L L4
-
2019–2022 BMW G29 Z4 – Turbocharged 3.0L L6
Toyota
-
2020–2025 Toyota A90/A91 GR Supra – Turbocharged 3.0L L6
-
2021–2022 Toyota A90/A91 GR Supra – Turbocharged 2.0L L4
-
2023 Toyota A90/A91 GR Supra A91-MT Edition – Turbocharged 3.0L L6
-
2023–2025 Toyota A90/A91 GR Supra Premium – Turbocharged 3.0L L6
-
2024 Toyota A90/A91 GR Supra Premium 45th Anniversary Edition – Turbocharged 3.0L L6
-
2024 Toyota A90/A91 GR Supra 45th Anniversary Edition – Turbocharged 3.0L L6
The CSF A90 Supra / BMW G-Series High-Performance Heat Exchanger with Rock Guard is the ultimate cooling upgrade for enthusiasts who demand reliability, consistency, and maximum power from their B58-powered Supra or BMW. Whether for daily driving, spirited canyon runs, or competitive track use, this plug-and-play system ensures your engine stays cool under pressure, protecting your investment and unlocking the full performance potential of your vehicle.
