Description
Disclaimer: This item is made to order. Lead time 6-10 weeks.

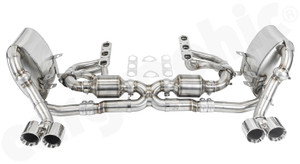

The CARGRAPHIC Sport Catalytic Converter Set for the Porsche 997.1 Carrera is designed to improve exhaust flow, reduce backpressure, enhance engine response, and increase performance while maintaining OBD2-compliant catalyst functionality.
This version features a separated exhaust flow design with two large-volume 200 CPSI Ø120mm HD OBD2 TRIMETAL catalytic converters. The increased catalyst housing volume and optimized expansion space are designed to maximize exhaust flow while maintaining efficient catalyst operation.
Manufactured in Germany from lightweight SS304L stainless steel, the system is mandrel-bent using CNC pipe-bending equipment to maintain a consistent pipe diameter throughout the exhaust system. Reinforced laser-cut flanges and brackets provide additional strength and durability.
The result is a high-performance catalytic converter system engineered for Porsche 997.1 Carrera applications, with improved throttle response, freer-revving characteristics, enhanced exhaust acoustics, and reduced backpressure.
Fitment
Porsche 997.1 Carrera 2 / Carrera 4 – 3.6L
Porsche 997.1 Carrera 2S / Carrera 4S – 3.8L
Vehicle Generation: Porsche 997.1
Position: Catalytic Converter / Exhaust System
Configuration: Separated Exhaust Flow
Important Application Note: This is the SUPER SOUND Export Version / Motorsport Version and is intended for track and race applications. It is not road legal and is not designed to meet federal emissions requirements in the USA.
What's Included
- 1 × CARGRAPHIC Sport Catalytic Converter Set with Separated Exhaust Flow
- 2 × 200 CPSI Ø120mm HD OBD2 TRIMETAL Catalytic Converters
Factory hardware is reused for installation.
Key Features
- 200 CPSI High-Flow Catalytic Converters: Uses two large-volume 200 CPSI HD OBD2 TRIMETAL catalytic converters for improved exhaust flow.
- Ø120mm Catalyst Housings: Large-diameter housings provide increased volume and expansion space for optimized exhaust flow.
- Separated Exhaust Flow: Designed specifically for the Porsche 997.1 Carrera exhaust configuration.
- Reduced Backpressure: Freer-flowing exhaust design helps reduce exhaust restriction.
- Improved Throttle Response: Reduced exhaust restriction contributes to sharper engine response.
- Freer-Reving Engine: Improved exhaust flow allows the engine to rev more freely.
- Performance Tested: CARGRAPHIC high-performance components are dyno tested.
- Up to 13 PS Increase: CARGRAPHIC states performance gains of up to 10kW (13 PS).
- Up to 18Nm Additional Torque: Designed to provide up to 18Nm of additional torque.
- Reduced Operating Temperature: Improved exhaust flow helps reduce operating temperatures.
- Enhanced Exhaust Acoustics: Delivers an enhanced, model-specific exhaust sound.
- No Drone or Resonance: Designed to minimize drone, resonance, and vibration, including when combined with additional CARGRAPHIC exhaust components.
- Marque-Compatible Sound: Tuned to provide a sportier sound while retaining the characteristic Porsche exhaust character.
- Lightweight Construction: SS304L stainless steel construction helps reduce system weight.
- Mandrel-Bent Tubing: CNC mandrel bending maintains a consistent pipe diameter throughout the exhaust tubing.
- Reinforced Construction: Laser-cut flanges and brackets provide additional strength.
- Easy Installation: Olive, band-clamp, and sleeve connections allow straightforward installation and adjustment.
- CARGRAPHIC Compatible: Designed for use with CARGRAPHIC or factory/OEM exhaust components.
Specifications
- Brand: CARGRAPHIC
- Product Type: Sport Catalytic Converter Set
- Application: Porsche 997.1 Carrera
- Engine Applications: 3.6L / 3.8L
- Exhaust Configuration: Separated Exhaust Flow
- Catalytic Converter Quantity: 2
- Catalyst Type: HD OBD2 TRIMETAL
- Catalyst Density: 200 CPSI
- Catalyst Housing Diameter: Ø120mm
- Material: SS304L Lightweight Stainless Steel
- Manufacturing: CNC Mandrel Bent
- Connections: Olive, Band-Clamp, and Sleeve
- Flanges: Reinforced Laser-Cut
- Performance: Dyno Tested
- Claimed Power Increase: Up to 10kW / 13 PS
- Claimed Torque Increase: Up to 18Nm
- Version: SUPER SOUND Export / Motorsport
- Installation: Factory Hardware Reused
- Manufacturing Origin: Made in Germany
Exhaust Flow & Performance
The CARGRAPHIC catalytic converter set is engineered around maximizing exhaust flow while maintaining a high-performance catalyst configuration.
The Ø120mm housings provide increased catalyst volume and expansion space, while the 200 CPSI HD OBD2 TRIMETAL catalytic converters are designed to provide a freer-flowing exhaust path.
Reduced backpressure can improve engine breathing, contributing to improved throttle response, freer-revving characteristics, and increased power and torque.
CARGRAPHIC states that the system can provide up to 10kW (13 PS) of additional power and up to 18Nm of additional torque, depending on the overall vehicle configuration and supporting modifications.
Sound & Acoustics
The SUPER SOUND Export Version is designed to enhance the exhaust sound of the Porsche 997.1 Carrera while maintaining a model-specific acoustic character.
CARGRAPHIC specifically states that the system is designed to operate without drone, resonance, or vibration, including when used with additional CARGRAPHIC exhaust components.
The result is a more aggressive and enhanced exhaust note while remaining consistent with the characteristic sound of the Porsche marque.
OBD2 & ECU Compatibility
The catalytic converter set is designed around OBD2-compliant catalyst technology, with CARGRAPHIC stating that no Check Engine Light (CEL) and no DME/ECU programming are required for the intended application.
However, this product is specifically sold as a Motorsport / Export Version and is not intended for public-road use.
Motorsport & Legal Notice
IMPORTANT: The CARGRAPHIC SUPER SOUND Export Version is intended solely for motorsport, track, and race applications.
It is not road legal and is not designed to meet federal emissions standards in the USA. CARGRAPHIC/HJS states that these products are not California Air Resources Board (CARB) certified and not EPA certified.
Customers are responsible for determining whether the product is legal for use in their specific jurisdiction and application.
Installation
The CARGRAPHIC Sport Catalytic Converter Set is designed for straightforward installation using olive, band-clamp, and sleeve connections that allow adjustment and alignment during installation.
The system uses reinforced laser-cut flanges and brackets for additional strength. Factory hardware is reused during installation.
Professional installation is recommended, particularly for motorsport applications where proper exhaust alignment and sealing are critical.
