Description
The CANchecked MFD28 Gen2 Multi Function Display for the Dodge Charger LX MK6 transforms the factory air vent area into an integrated digital vehicle monitoring and diagnostics center. Designed specifically for Dodge Charger LX MK6 applications, the 2.8-inch MFD28 Gen2 provides OEM-style integration while giving drivers access to extensive vehicle data, performance information, and advanced display customization directly within their field of view.
The high-resolution touchscreen allows intuitive swipe navigation between multiple display pages. The vehicle-specific vent assembly maintains functional airflow while seamlessly integrating the display into the Charger's interior. Through direct CAN Bus communication and supported manufacturer-specific protocols, the MFD28 Gen2 can access a wide range of vehicle parameters from the vehicle's control modules.
Designed for enthusiasts who require more than basic gauge monitoring, the MFD28 Gen2 supports custom display pages, data logging, analog sensor integration, ethanol content monitoring, performance timing functions, and CAN Bus switching. Whether installed in a daily-driven Charger, street build, or track-focused application, the display can be configured around the vehicle data most relevant to your driving requirements.
Key Features
- Vehicle-specific CANchecked display system for Dodge Charger LX MK6 applications
- 2.8-inch high-resolution touchscreen
- Integrated air vent design maintains functional airflow
- OEM-style dashboard integration
- Swipe navigation between display pages
- Direct CAN Bus communication
- Manufacturer-specific diagnostic protocol support
- Up to 10 configurable display pages
- Up to 64 widgets per page
- Integrated Performance Meter for acceleration testing
- Internal SD card data logging
- Read and clear diagnostic trouble codes on supported protocols
- Automatic display dimming with vehicle illumination on supported applications
- Direct ethanol content and temperature monitoring
- External shift light module support
- Four analog sensor inputs
- CAN Switching and custom CAN message functionality
- Custom display layouts and user-created pages
Monitored Parameters
Depending on vehicle configuration and available CAN Bus data, the MFD28 Gen2 can monitor parameters including:
- Oil temperature
- Coolant temperature
- Exhaust gas temperature
- Intake air temperature
- Boost pressure
- Fuel pressure
- Actual and target rail pressure
- Lambda values
- Fuel trims
- Engine RPM
- Vehicle speed
- Throttle position
- Ignition timing
- Cylinder correction values
- Torque output
- Gear position
- Battery voltage
Customization Features
- Custom display page creation
- Drag-and-drop widget placement
- Adjustable widget sizing and positioning
- Fully customizable display colors
- Custom graphics and startup animations
- CANchecked DSS software support
- Built-in CAN logger and data viewer
- User-configurable alarms and warning notifications
- Math channels and advanced sensor calculations
- 2D and 3D user mapping functions
- Custom CAN message functionality
Specifications
- Brand: CANchecked
- Product: MFD28 Gen2 Multi Function Display
- Display Size: 2.8 inches
- Display Type: High-resolution touchscreen
- Generation: Gen2
- Vehicle Integration: Vehicle-specific air vent assembly
- Communication: CAN Bus
- Analog Inputs: 4
- Display Pages: Up to 10
- Widgets: Up to 64 per page
- Data Logging: Internal SD card
- Software: CANchecked DSS
- Dimming: Automatic with vehicle illumination on supported applications
- Orientation: Left-Hand Drive (LHD)
- Application: Dodge Charger LX MK6

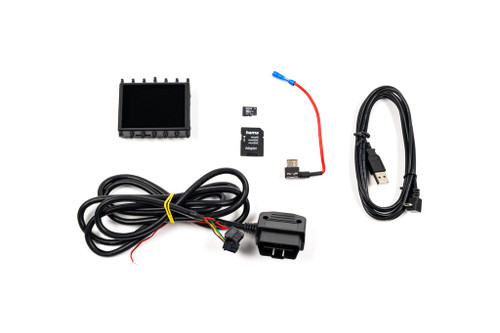

What's Included
- CANchecked MFD28 Gen2 display integrated into vehicle-specific vent assembly
- Vehicle-specific connection harness
- Quick Start Guide
- USB data cable
- Pre-installed SD card
- SD card adapter
- Anti-reflection display film
Compatible CANchecked Accessories
- SLM08 External Shift Light Module
- ANC04 Analog Input Harness
- CBD08 CAN Distribution Hub
- NTC01 Temperature Sensor
- TCC01 Type-K Temperature Converter
- FLP01 Pressure Sensor
- BST10 Boost Pressure Sensor
Vehicle Fitment
Dodge
- Dodge Charger LX MK6 — LHD
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with the vehicle through the CAN Bus. CAN Bus became widely available in production vehicles from approximately 2008 onwards, but compatibility and available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that can access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, including vehicles within the same model range.
Not all displayed values are intended for diagnostic or safety-critical purposes. Displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
