Description
Unlock race-gas performance using pump fuel with the Burger Tuning JB4 Universal Water/Methanol Injection (WMI) Kit. This system delivers the cooling and detonation resistance of 100+ octane fuel or E85, allowing for higher boost targets, improved ignition timing, and significant power gains — all while maintaining safety and reliability.

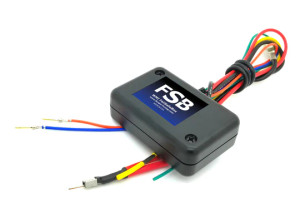

The heart of the system is the Burger Motorsports JB4 FSB WMI Controller, which enables full JB4 tuning system integration. Unlike generic WMI setups, this controller offers dynamic progressive flow control, allowing real-time mapping based on boost, throttle position, engine RPM, intake temperature, gear, ignition advance, and more using the JB4’s CANbus data feed.
The system continuously monitors pump current and includes a built-in flow-based safety feature. If methanol flow drops or the tank runs dry, the JB4 will automatically reduce boost and adjust tuning parameters to protect the engine. Flow status and activation are fully visible through the JB4 Mobile app or in-dash display, with WMI activation/deactivation available from the driver’s seat.
Included in the base kit is a 220psi Aquatec pump, a methanol-rated solenoid with built-in filter, 20 feet of durable WMI line, a compression fitting set for leak-free operation, and complete wiring. You can further customize the system with your choice of nozzles, tanks, and an optional steel braided line upgrade for high-pressure/high-temperature environments.
Vehicle Fitment
This is a universal kit and is compatible with any vehicle equipped with a Burger Tuning JB4 system.
- Works with all JB4-supported turbocharged vehicles
- Universal trunk-mount design
- Compatible with 4, 6, and 8-cylinder applications (nozzle selection based on setup)
Features & Benefits
- Simulates the power of running 100+ octane or E85 fuel using pump gas
- Fully integrates with Burger Tuning JB4 for real-time progressive mapping
- Flow-based safety system with automatic JB4 fallback if WMI fails
- Adjustable by boost, RPM, throttle, IAT, timing, and more via JB4 CANbus
- Activates or deactivates from driver seat and in real time
- Live WMI flow monitoring via JB4 app or dash
- JB4 disables WMI automatically during traction control or safety map events
- Includes 220psi Aquatec pump (industry standard)
- Comes with methanol-rated solenoid, filter, and 20' of WMI line
- Leak-free compression fittings included
- Optional WMI nozzles and tanks available
- Optional Elite Steel Braided Hardline upgrade available
- Made in the USA
Nozzle Recommendations
Choose based on engine and boost setup:
- 4-cylinder setups: BM7
- 6-cylinder setups: BM10 or Dual BM5
- 8-cylinder setups: Dual BM5 or BM10 for high-boost/large turbo setups
Note: Two smaller nozzles typically offer better atomization than one large nozzle.
Optional Elite Steel Braided Hardline Upgrade
- Includes 18 feet of steel braided methanol-safe lines
- Teflon inner core, stainless braid, and nylon mesh for durability
- Includes BMS Elite AN fittings for high-pressure applications
- Withstands extreme temps and fluid pressure
- Ideal for race and high-performance builds
Tank Options
1.25-Gallon Heavy-Duty Universal Tank
- Compact vertical-mount tank
- Built-in anti-starvation reservoir
- Pre-threaded pump feed bung
- 2-way vented black plastic cap
- Optional billet check valve cap available
- Translucent for easy fluid level checks
- Dimensions: L 11" x W 4.5" x H 9"
- Universal trunk mount
2-Gallon Universal Low-Profile Tank
- Larger capacity for extended WMI operation
- Allows pump mount on tank base for fast, clean installs
- Offered in black or clear
- Comes with pre-tapped pump feed fitting
- 2-way vented black plastic cap included
- Optional billet 1-way check valve cap available
- Dimensions: L 15.5" x W 8" x H 8.25"
- Universal trunk mount
