Description

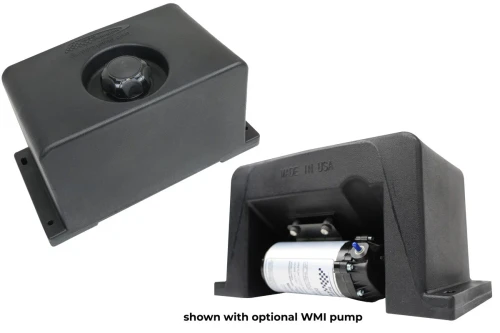

Upgrade your water/methanol injection system with the Burger Tuning BMS 2 Gallon Universal Low Profile Water/Methanol Injection (WMI) Tank. Designed for clean, efficient installation and maximum fluid capacity, this universal tank allows the water/methanol pump to mount directly to the bottom of the reservoir, creating a compact setup that's ideal for a wide variety of trunk-mounted applications.
With a generous 2-gallon capacity, this tank reduces the frequency of refills, making it ideal for high-performance street and track vehicles running water/methanol injection. Its low-profile design provides flexible mounting options while maintaining valuable cargo space.
The tank is available in black for a stealthy, factory-like appearance or clear for easy visual monitoring of fluid levels without removing the cap. It comes equipped with a 2-way vented black plastic cap, compression pump feed fitting, and four integrated mounting holes for secure installation.
Compatible with all DDP 5800 pumps (sold separately), this tank is an excellent foundation for building or upgrading a water/methanol injection system. An optional blue billet aluminum cap with a 1-way check valve is also available separately for enhanced system performance.
For nozzle selection, BMS "Super Atomizing" nozzles utilize 1/8-inch NPT threads and install into the threaded bungs found on most aftermarket charge pipes. Nozzle sizing should be selected based on the vehicle's horsepower and the number of available nozzle bungs. In most applications, using two smaller nozzles instead of one larger nozzle provides improved atomization and more even fluid distribution.
Features
- Universal 2-gallon water/methanol injection reservoir
- Low-profile design for flexible installation
- Pump mounts directly to the bottom of the tank for a clean installation
- Compatible with all DDP 5800 water/methanol injection pumps
- Larger capacity reduces refill frequency
- Available in clear for quick visual fluid level inspection
- Available in black for a stealth, factory-style appearance
- Includes a 2-way vented black plastic cap
- Includes compression pump feed fitting
- Four integrated mounting holes for secure installation
- Compatible with optional blue billet aluminum cap featuring a 1-way check valve (sold separately)
- Supports 1/8-inch NPT water/methanol injection nozzles installed in aftermarket charge pipe bungs
- Manufactured in the USA
Tank Dimensions
- Length: 15.5 inches
- Width: 8 inches
- Height: 8.25 inches
Fitment
Universal Fitment
Compatible with a wide variety of vehicles and custom water/methanol injection installations.
- Fits most trunk-mounted WMI applications
- Designed for use with all DDP 5800 water/methanol injection pumps (pump sold separately)
- Compatible with water/methanol systems utilizing 1/8-inch NPT injection nozzles
Note: Pump, nozzles, and optional billet cap are sold separately. Verify available mounting space before ordering.
