Description
Expedite your order!
If you are in a hurry and would like the activation key right away, Text 702-494-9435 your order number and we will send you the activation key asap!
For expediting a JordanTuned custom map: please text 702-494-9435 your order number and we will rush your order!
Why Choose Extreme Power House?
- Free ENET Cable with the purchase of your bootmod3 license
- 1 Free OTS Map of your choice
- BM3 decal Free of cost
Bootmod3 Flash Tune is the world's first custom mobile flash tuning platform for the BMW F series, and it's unlike any other solution on the market. Developed and tested in-house from the ground up over the course of almost two years, Bootmod3 is a custom BMW factory DME tuning solution that offers a range of features that are added regularly.
With Bootmod3, you can build the ultimate tune for your vehicle, going from stock to full race calibration, and anywhere in between, with a map switch in the provided mobile app. Bootmod3 calibrates the factory vehicle modules over the OBD port, making the process quick and convenient, allowing you to do it in the comfort of your driveway or anywhere with internet access.
Unlock the full potential of your BMW F series with Bootmod3 Flash Tune today. With a fully customizable tune, you can experience the ultimate driving machine like never before. So, whether you're looking for increased horsepower, torque, or improved throttle response, Bootmod3 has got you covered.
bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:
- Mobile app (Apple App Now Available, Android 4.1+ minimum, Android 5.1+ recommended)
- Datalogging over 200 diagnostic channels, up to 40 channels concurrently
- Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
- Cloud based storage for map data and datalogs
- Reverting back to stock performance map
- Live Dash - realtime vehicle parameter monitoring via in-app guages
- Diagnostics
- Read and clear trouble codes in all vehicle modules
- Reset learned adaptations (octane, knock, Valvetronic, etc)
- ECU power reset
- (Optional) Custom tuning for non-standard vehicle hardware and alternative fuels such as E85 and race gas
Some of the map features provided:
- Top speed limiter removal
- Higher rev limiter
- Cold start cat heat cycle and cat efficiency check removed (for off-road use)
- Maps for upgraded turbos
- E85/blend, race gas and meth injection tuning
- Custom Throttle mapping
- Backend Flash maps for use with piggybacks such as the JB4

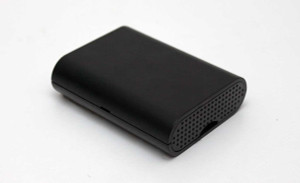

*** bootmod3 OBD Agent device is recommended but not required to use the bootmod3 platform. It removes the need for a laptop in the car for using bootmod3's features. If you're looking to simply load a tune on the car without much datalogging and monitoring while reducing cost then using your laptop instead of our device may be the ticket for you.
For more information please email us at mike@x-ph.com or refer to our Instagram and Facebook accounts.
You can also call us at 702-494-9435.
Please note: bootmod3 will not work on your vehicle if your DME is locked. Order cancellations due to the vehicle's DME being locked will be subject to a 5% nonrefundable merchant fee.
VEHICLE MANUFACTURER WARRANTY AND EMISSIONS DISCLAIMER
Some items used and/or installed by Extreme Power House may void portions of your vehicle’s factory warranty. Some items may not be legal for “on highway use”. PRO TUNING FREAKS makes no guarantees to the legality of any parts used for “on highway vehicles” and accepts no responsibility for compliance with the vehicle’s factory warranty.
Please note: If you request to have your license deactivated and cancelled for any reason, you must return the free cables included with your purchase for a full refund. If you do not return the free cables, the costs of the ENET cable and adapter will be deducted from your reimbursement amount.
Custom Maps
Extreme Power House is happy to announce a partnership with JordanTuned. Our customers can now order the Bootmod3 license + a custom map direct from our website.
Once your order is placed, please allow 1-2 business days for JordanTuned to receive your order. Once your order has been fully processed on our end, we will send you an email with instructions on how to request your custom map!
If you are in a hurry and would like to get started on the custom tuning process ASAP, please text 702-494-9435 your order number and we will rush your order!
S55 (Stock Turbos)
- Full E85 Stage 1 S55 (Stock Turbos) 540+whp/550+wtq / 20-21psi Peak Boost
- Full E85 Stage 2 S55 (Stock Turbos) 560+whp/570+wtq / 23-24psi Peak Boost
- Full E85 Stage 2 Hybrid S55 (Stock Turbos) 570+whp/580+wtq / 25-26psi Peak Boost
- Full E85 Stage 2+ S55 (Stock Turbos) 580+whp/600+wtq / 26-27psi Peak Boost / Max Effort Stock Turbo Tune
- 93 Octane (98RON) S55 (Stock Turbos) 500-530whp/540+wtq / 23-34psi Peak Boost
- 91 Octane S55 (Stock Turbos) 485-495whp/500+wtq / 23-24psi Peak Boost
- Race Fuels S55 (Stock Turbos) Depends On Race Fuel Type (100 Oct, MS109, Q16…etc)
S55 (Aftermarket Turbos)
- Full E85 S55 (Aftermarket Turbos) Depends On Turbos/Setup and Requires Aux Fueling
- 93 Octane S55 (Aftermarket Turbos) Depends On Turbos/Setup
- Race Fuels S55 (Aftermarket Turbos) Depends On Turbos/Setup
Supported S55 Engines:
- 2014-2020 F80 M3
- 2014-2020 F82/F83 M4
- 2018-present F87 M2 Competition
*** 2019+ S55 models with March 2019 software require bench unlock.
N55 (Stock Turbo)
- E30 N55 (Stock Turbo) 410-460whp (Depending on OEM HPFP vs. Aftermarket HPFP)
- 93 Octane (98RON) N55 (Stock Turbo) 380-420whp (Depending on OEM HPFP vs. Aftermarket HPFP)
- 91 Octane N55 (Stock Turbo) 360-390whp (Depending on OEM HPFP vs. Aftermarket HPFP)
- Race Fuels N55 (Stock Turbo) Depends On Race Fuel Type (100 Oct, MS109, Q16…etc)
- Full E85 N55 (Stock Turbo) Requires Aux Fueling and/or Aftermarket HPFP
N55 (Aftermarket Turbo)
- All Fuels N55 (Aftermarket Turbo) Depends on Turbo/Setup
BMW F series N55 vehicles supported (if your N55 vehicle is not listed please inquire with us):
- 2012-2016 F20/F21 M135i
- 2013-2016 F22/F23 M235i
- 2011-2015 F30/F31 335i
- 2013-2015 F30 ActiveHybrid 3
- 2013-2016 F32/F33/F36 435i
- 2009-2017 F07/F10/F11 535i
- 2011-2018 F06/F12/F13 640i
- 2012-2015 F01 740i
- 2010-2017 F25 X3 xDrive35i
- 2014-2016 F26 X4 xDrive35i
- 2015-2018 F26 X4 M40i
- 2014-2018 F15 X5 xDrive35i
- 2014-2019 F16 X6 xDrive35i
- 2016-2018 F87 M2
B58 Engine
*** B58 BMWs with June 2019+ software may require DME unlock done on the bench to enable OBD flashing. (We have also received reports of some vehicles with pre-June 2019 software requiring a DME unlock.)
***2020 Supra Models with June 2019+ software require a bench unlock. (We have also received reports of some vehicles with pre-June 2019 software requiring a DME unlock.)
Please email us with your VIN at support@x-ph.com if you'd like to check compatibility before ordering.
B58 engine BMW Vehicles supported (if your B58 vehicle is not listed please inquire with us):
- 2016–2019 F20/F21 M140i
- 2016–present F22/F23 M240i
- 2016–2019 F30/F31/F34 340i
- 2016–present F32/F33/F36 440i
- 2017-present G01 X3 M40i
- 2018-present G02 X4 M40i
- 2019-present G20 M340i
- 2017–present G30/G31 540i
- 2017–present G32 640i
- 2016–present G11/G12 740i
- 2020-present G14/G15/G16 840i
- 2018-present G29 Z4 M40i
B58-F/G-Series (Stock Turbo)
- Full E85 B58-F/G-Series (Stock Turbo) Requires Aux Fueling and/or Aftermarket HPFP E40-50 B58-F/G-Series (Stock Turbo) 440-475whp
- 93 Octane (98RON) B58-F/G-Series (Stock Turbo) 400-440whp
B58-F/G-Series (Aftermarket Turbo)
- All Fuels B58-F/G-Series (Aftermarket Turbo) Depends on Turbo/Setup
B58-A90 Supra/J29 Z4 (Stock Turbo)
- Full E85 B58-A90 Supra/J29 Z4 (Stock Turbo 490-520whp (as of 10/19) / Is achievable on STOCK FUEL SYSTEM
- 93 Octane (98RON) B58-A90 Supra/J29 Z4 (Stock Turbo) 450-465whp (as of 10/19)
- 91 Octane B58-A90 Supra/J29 Z4 (Stock Turbo) 400-440whp (as of 10/19)
- Race Fuels B58-A90 Supra/J29 Z4 (Stock Turbo) Depends On Race Fuel Type (100 Oct, MS109, Q16…etc)
- If your Supra's DME is produced after June 21, 2020, and has the latest software installed, this product will not be compatible with your vehicle.
B58-A90 Supra/J29 Z4 (Aftermarket Turbo)
- All Fuels B58-A90 Supra/J29 Z4 (Aftermarket Turbo) Depends on Turbo/Setup
- If your Supra's DME is produced after June 21, 2020, and has the latest software installed, this product will not be compatible with your vehicle.
B48 (Stock Turbo) Full E85 B48 (Stock Turbo)
- 93 Octane (98RON) B48 (Stock Turbo) Still In Public Testing (10/19)
- 91 Octane B48 (Stock Turbo) Still In Public Testing (10/19)
- Race Fuels B48 (Stock Turbo) Still In Public Testing (10/19)
B48 (Aftermarket Turbo)
- All Fuels B48 (Aftermarket Turbo) Depends on Turbo/Setup
N20/N26 (Stock Turbo)
- Full E85 N20/N26 (Stock Turbo) 300-340whp (Depending on Stock Fuel System Strength)
- 93 Octane (98RON) N20/N26 (Stock Turbo) 280-320whp
- 91 Octane N20/N26 (Stock Turbo) 260-290whp
- Race Fuels N20/N26 (Stock Turbo) Depends On Race Fuel Type (100 Oct, MS109, Q16…etc)
N20/N26 (Aftermarket Turbo)
- All Fuels N20/N26 (Aftermarket Turbo) Depends on Turbo/Setup
S63 (M5, M6…etc)
- E30 S63 (M5, M6…etc) Depends on Turbo/Setup $699USD
- 93 Octane (98RON) S63 (M5, M6…etc) Depends on Turbo/Setup $699USD
- 91 Octane S63 (M5, M6…etc) Depends on Turbo/Setup $699USD
B48 B46 - MINI F54 F55 F56 F57 F60 Cooper S JCW Tune
B48-H (High Compression) models:
Stage 1 ACN91 octane: up to 30% HP / 32% TQ
Stage 1 91 octane: up to 40% HP / 43% TQ
Stage 1 93 octane: up to 42 % HP / 44% TQ
Stage 2 ACN91 octane: up to 45% HP / 46% TQ
Stage 2 91 octane: up to 50% HP / 48% TQ
Stage 2 93 octane: up to 54% HP / 50% TQ
B48-L (Low Compression) models:
Stage 1 ACN91 octane: up to 10% HP / 13% TQ
Stage 1 91 octane: up to 12% HP / 15% TQ
Stage 1 93 octane: up to 14% HP / 16% TQ
Stage 2 ACN91 octane: up to 15% HP / 16% TQ
Stage 2 91 octane: up to 19% HP / 18% TQ
Stage 2 93 octane: up to 22% HP / 20% TQ
