Description

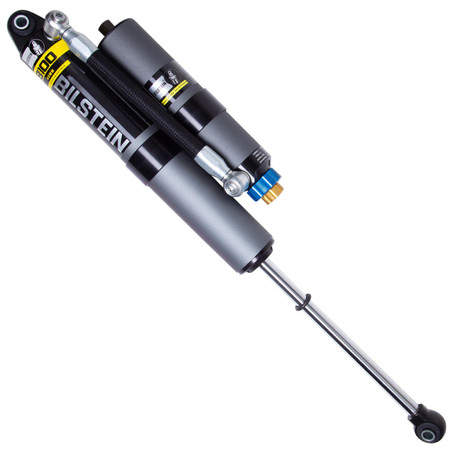

Take your lifted Jeep Wrangler to the next level with the Bilstein B8 8100 Series Bypass Shocks. Designed for demanding off-road performance and exceptional on-road comfort, these direct-fit, position-sensitive shock absorbers combine Bilstein's race-proven technology with premium construction to provide superior suspension control, improved ride quality, and outstanding durability.
The Bilstein B8 8100 Series features a dual-tube externally adjustable bypass design equipped with advanced incremental flow bypass adjusters. This allows for precise and repeatable rebound and compression adjustments, giving you the flexibility to tailor suspension performance for rock crawling, overlanding, desert driving, or daily commuting.
A remote reservoir with a bottom hose and remote reservoir exit port delivers enhanced compression control throughout the entire suspension cycle while improving heat dissipation during aggressive off-road use. Each shock includes a bolt-on aluminum anodized chassis mount for secure and simple remote reservoir installation.
Constructed with a corrosion-resistant zinc-plated finish, a heavy-duty 60mm non-coilover body, and Bilstein's gas-charged monotube technology, the B8 8100 Series provides consistent damping, excellent bottom-out resistance, and long-lasting performance in the toughest environments.
Vehicle Fitment
Compatible with:
• 2018 Jeep Wrangler
• 2019 Jeep Wrangler
• 2020 Jeep Wrangler
• 2021 Jeep Wrangler
• 2022 Jeep Wrangler
• 2023 Jeep Wrangler
• 2024 Jeep Wrangler
• 2025 Jeep Wrangler
• 2026 Jeep Wrangler
Product Features
• Direct-fit, position-sensitive bypass shock absorber for lifted Jeep Wrangler applications
• Designed for vehicles with 2.00 to 3.00 inches of lift
• Dual-tube externally adjustable bypass design
• Incremental flow bypass adjusters allow precise rebound and compression tuning
• Improves ride comfort, suspension control, and off-road capability
• Delivers exceptional bottom-out resistance during aggressive off-road driving
• Bottom hose and remote reservoir exit port improve compression control throughout the shock travel
• Includes a bolt-on aluminum anodized chassis mount for remote reservoir installation
• Durable zinc-plated finish provides outstanding corrosion resistance
• Large 60mm non-coilover shock body design
• Monotube internal construction for consistent damping performance
• Gas-charged design reduces shock fade under demanding conditions
• Adjustable valving for customized suspension tuning
• Sold individually
Product Specifications
• Brand: Bilstein
• Manufacturer Part Number: 25-331110
• Product Line: Bilstein B8 8100 Series Bypass Shocks
• Part Type: Shocks and Struts
• Ride Height: Lifted
• Lifted Amount Range: 2.00-3.00 inches
• Extended Length: 28.77 inches
• Collapsed Length: 17.75 inches
• Internal Design: Monotube
• Adjustable Valving: Yes
• Gas Charged: Yes
• Upper Mount: Eyelet
• Lower Mount: Eyelet
• Boot Included: No
• Body Diameter: 2.362 inches
• Remanufactured: No
• Quantity: Sold individually
Warranty
Bilstein products are backed by Bilstein's manufacturer warranty against defects in materials and workmanship. Warranty coverage is subject to Bilstein's warranty terms and proper installation requirements.
The Bilstein B8 8100 Series Bypass Shocks are an excellent suspension upgrade for lifted 2018-2026 Jeep Wrangler models equipped with 2.00 to 3.00 inches of lift. Featuring externally adjustable bypass technology, remote reservoir performance, monotube gas-pressure construction, and Bilstein's legendary engineering, these shocks deliver exceptional handling, ride comfort, and durability both on and off the road.
