Description

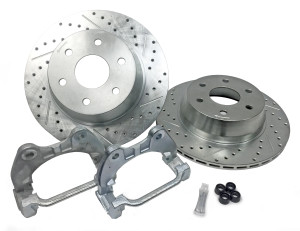

Get maximum stopping power without the full cost of a big brake kit with the Baer BIG Claw Front Rotor Upgrade. Designed for 2005–2018 GM 1500 trucks and 2007–2018 GM 1500 SUVs, this system includes 15-inch rotors—larger than factory spec—for better brake torque and fade resistance.
Purpose-cast and vented for high-performance use, the rotors feature directional curved vanes that draw air through like a centrifugal pump to keep temperatures low. The cross-drilled and slotted face improves debris clearance and gas escape for consistent pedal feel. With a zinc-plated finish, these rotors also add a clean, aggressive look behind open wheels.
The direct bolt-on installation uses your existing calipers and pads, with included caliper relocation brackets. No brake bleeding required.
Important: Always verify clearance with the provided template, especially when checking spare tire/wheel fitment.
Fits the Following Applications:
- GM Trucks: 2005–2018 Silverado 1500, Sierra 1500 (2WD/4WD/AWD)
- GM SUVs: 2007–2018 Tahoe, Yukon, Suburban, Escalade (2WD/4WD/AWD)
- Front Axle Only
Key Features:
- 15" diameter rotors deliver increased brake torque and reduced stopping distances
- Cross-drilled and slotted for gas/dust evacuation and consistent pedal feel
- One-piece full cast construction with increased fire path mass for heat absorption
- Curved vane directional design improves air circulation for cooler braking
- Zinc-plated coating protects against rust and enhances visual appeal
- Includes caliper relocation brackets—no need to bleed brakes
- Reuses OEM pads and hardware
- Direct bolt-on fitment
Technical Specifications:
- Rotor Diameter: 15.000 in
- Nominal Thickness: 1.181 in
- Discard Thickness: 1.098 in (27.900 mm)
- Overall Height: 2.177 in (55.296 mm)
- Center Bore Diameter: 3.094 in (78.588 mm)
- Bolt Pattern: 6x139.7 mm (6x5.5 in)
- Rotor Type: Vented
- Surface Finish: Slotted, Drilled & Zinc Plated
- ABS Tone Ring: Not included
- Construction: Full Cast Iron
- Weight: 31.93 lb per rotor
- Includes: Rotor pair + caliper relocation brackets
