Description
The ARM Motorsports MK8 GTI / Golf R Front Mount Intercooler Kit is engineered to significantly reduce intake air temperatures and increase overall power consistency on the Gen 4 EA888 platform. By relocating the intercooler to a true front-mount position ahead of the radiator stack, this system maximizes exposure to ambient airflow for superior heat rejection compared to factory and stock-location intercoolers.
Designed as a complete bolt-on solution, the ARM MK8 FMIC delivers exceptional cooling efficiency without cutting, drilling, or modifying factory components. This makes it one of the most effective and user-friendly intercooler upgrades available for the MK8 platform.
Key Highlights
• Improves cooling efficiency by 84%
• Significantly lowers intake air temperatures (IATs)
• True front-mount intercooler design
• 100% bolt-on installation
• No cutting or drilling required
Why Your MK8 Needs an Intercooler Upgrade
Increasing power through tuning raises boost pressure and turbocharger speed, which directly increases charge-air temperatures. As intake air temperatures rise, the ECU compensates by reducing ignition timing and limiting power output to protect the engine.
Because of this, most tuners require an upgraded intercooler for any tune beyond a basic Stage 1 map. The ideal solution is an intercooler that efficiently controls IATs without unnecessary volume that can negatively affect throttle response. The ARM MK8 FMIC achieves this balance by combining optimal core size with superior placement.
Cooling Performance
Despite its compact size, the ARM MK8 FMIC delivers outstanding real-world results.
• Intake air temperatures remained only 21°F above ambient during 2nd–4th gear pulls
• IATs increased just 7°F from the bottom of 2nd gear to the top of 4th
• OEM intercooler temperatures reached 114°F with a 45°F rise
• 84% reduction in IAT rise compared to stock
Testing was performed on a manual-transmission MK8 Golf R with a Stage 2+ tune running 28 psi.
Intercooler Core & Construction
The ARM MK8 FMIC uses a high-efficiency bar-and-plate core measuring 27.8 x 9.5 x 2.5 inches, resulting in a total core volume of 660 cubic inches. The factory intercooler measures approximately 550 cubic inches, making the ARM FMIC 20% larger while remaining more efficient due to its front-mount placement.
• Bar-and-plate intercooler core
• 27.8 x 9.5 x 2.5 inch dimensions
• 660 cubic inches total volume
• Supports applications up to 700 horsepower
High-flow cast aluminum end tanks feature oval-shaped inlet and outlet ports cast directly into the tanks. This design maximizes airflow while ensuring proper clearance between intercooler piping and the vehicle frame.
The oval center sections of the inlet and outlet tubing retain the same overall cross-sectional area as a 2.5-inch round inlet and outlet, measuring 4.9 square inches.
Intercooler Piping Design
The ARM MK8 FMIC uses 2.5-inch inlet and outlet connections to maintain optimal airflow velocity and fast boost response.
• 2.5-inch inlet and outlet diameter
• Direct connection to factory charge pipes
• Compatible with OEM and most aftermarket charge pipes
• Supports higher boost and tuned applications
Ambient Temperature Sensor Integration
MK8-specific mounting brackets include a dedicated provision for relocating the factory ambient air temperature sensor.
• Maintains correct sensor placement
• Ensures accurate ambient temperature readings
• Preserves proper ECU temperature-based calculations
OEM Intercooler Block-Off Protection
Included silicone block-off caps seal the inlet and outlet of the factory intercooler after installation.
• Prevents dirt and debris entry
• Protects against moisture intrusion
• Keeps unused OEM intercooler clean
Installation Overview
The ARM MK8 FMIC is one of the simplest intercooler upgrades available for the MK8 platform.
• Front bumper removal required
• No crash bar or radiator stack disassembly
• No coolant draining required
• No cutting or drilling
• MK8-specific mounting brackets included
• Estimated install time: 2–3 hours
Optional Bi-Cooler Upgrade
For vehicles running or planning to run an upgraded turbocharger, the ARM MK8 Bi-Cooler Hose Upgrade allows simultaneous use of a stock-location intercooler alongside the ARM FMIC.
• Improves cooling efficiency beyond FMIC alone
• Recommended only for upgraded turbo setups
• May cause slight pressure drop on OEM turbo

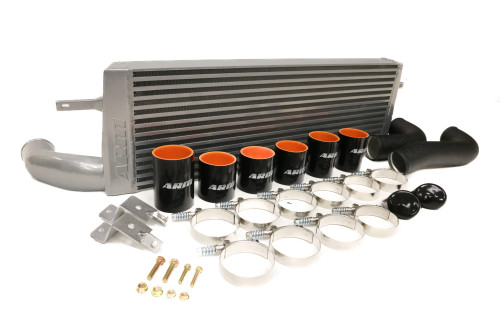

What’s Included
• 1x ARM MK8 Front Mount Intercooler
• 1x Driver-side FMIC piping
• 1x Passenger-side FMIC piping
• 2x MK8 FMIC mounting brackets
• 2x FMIC-to-piping silicone couplers
• 2x FMIC-to-ARM charge pipe silicone couplers
• 2x FMIC-to-OEM charge pipe silicone couplers
• 10x constant-tension T-bolt clamps
• 2x FMIC-to-bracket bolts and nuts
• 2x bracket-to-frame bolts and nuts
• 2x OEM intercooler block-off caps
Fitment Guide
Important Fitment Notes
• Does NOT fit vehicles with Adaptive Cruise Control mounted in the lower bumper
• Fits vehicles with Adaptive Cruise Control mounted in the VW emblem
Vehicle Compatibility
Volkswagen Golf VIII GTI
• Body Style: Hatchback
• Engine: 2.0T EA888 Gen 4
Volkswagen Golf VIII R
• Body Style: Hatchback
• Engine: 2.0T EA888 Gen 4
Every ARM Motorsports product is backed by a lifetime warranty covering defects in craftsmanship and fitment. Warranty replacement is automatically issued at the time of purchase.
