Description
This item is made to order, normal lead time is 2 weeks.

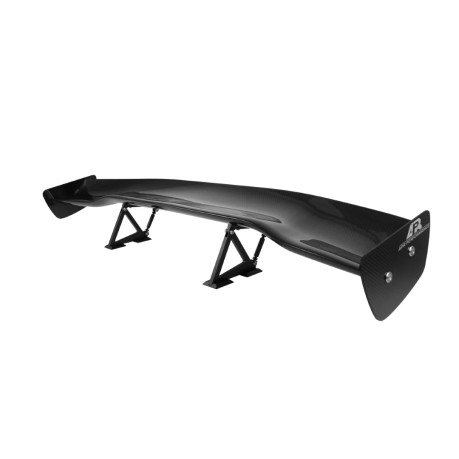

Maximize aerodynamic performance and rear-end stability with the APR GTC-200 Universal Carbon Fiber Adjustable Wing. Designed for motorsport, track, and high-performance street applications, this wing delivers efficient downforce with minimal drag, improving cornering, braking, and high-speed balance.
The GTC-200 features a precision-engineered airfoil developed using Computational Fluid Dynamics (CFD) to provide an optimized downforce-to-drag ratio. The cambered profile ensures effective airflow attachment and minimal flow separation, even at high speeds.
Adjustability is a key feature of the GTC-200. The angle of attack can be set between 0° and 15°, allowing users to fine-tune aerodynamic performance based on track conditions, vehicle setup, and driving needs. Higher angles increase downforce for better traction and cornering, while lower angles reduce drag for improved top speed.
Constructed from pre-impregnated woven carbon fiber, the wing is lightweight yet exceptionally strong. Autoclave curing in aluminum billet molds ensures rigidity, durability, and resistance to deformation under high aerodynamic loads.
The GTC-200 mounts via high-strength 10mm 6061 billet aluminum adjustable risers, providing precise height and position control for optimal airflow management. Optional carbon fiber or aluminum bottom plates allow vehicle-specific or universal fitment. An optional 1/2-inch carbon fiber Gurney Flap can be added to further enhance downforce and reduce flow separation.
FITMENT
- Designed for universal fitment on most racing and high-performance vehicles.
- Vehicle-specific fitment is available using APR carbon fiber bottom plates.
- Universal fitment uses aluminum bottom plates.
- Optional Gurney Flap mounts at 29.5" center-to-center for added downforce.
- Compatible with vehicles requiring a mid-sized wing (60.5" span) and adjustable mounting systems.
Key Features
- Brand: APR
- Carbon fiber construction, lightweight and rigid
- 60.5" (1520mm) span, 7.5"–9.5" (190.5–241.3mm) variable chord depth
- Adjustable angle of attack: 0°–15°
- Optimized airfoil for high downforce with minimal drag (11:1 downforce-to-drag ratio)
- Pre-impregnated woven carbon fiber autoclave-cured
- Adjustable 10mm 6061 billet aluminum risers for precise mounting
- Optional 1/2" carbon fiber Gurney Flap for additional aerodynamic performance
- Universal and vehicle-specific mounting options
- Compact, track-oriented mid-sized wing design
