Description
This convenient Solar Battery Charger allows you to safely charge your Antigravity Lithium Battery, from a solar panel such as our XS-60 or XS-100. The Solar Charger also works with other brands of solar panels and any 12-Volt Lithium or Lead/Acid vehicle battery.
Works for Car, Motorcycle and other 12v Vehicle Batteries
Works for Lithium or Lead/Acid Batteries
PWM (Pulse Width Modulation) technology
Efficient power conversion for fast and proper charging
Multiple protections built-in
Comes with attached Clamps

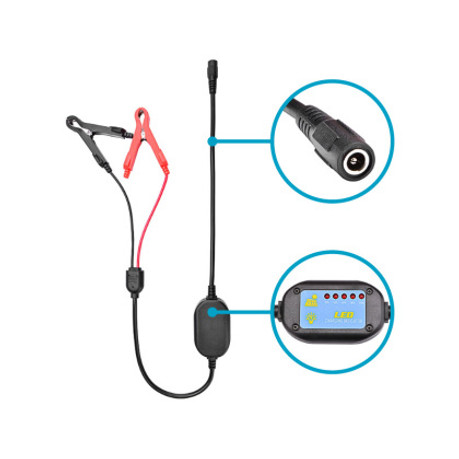

AG-BC-SCC Solar Battery Charger
Off-grid charging from the power of the sun! The Antigravity Solar Charger is perfect for safely maintaining your vehicle battery with a solar panel. It automatically provides a regulated charge from your solar panel to any 12V lithium or lead/acid battery. This high-efficiency solar charge controller is equipped with PWM (pulse width modulation) technology, ensuring the proper voltage is delivered and your battery gets the maximum amount of energy in the shortest time without causing any damage to the battery.
Features
PWM technology
Plug and play: completely automatic, regulated charging
DC-DC voltage reducing and stabilizing
Five LED indicators for state of charge
Over-voltage and over-discharge protections
Specs
LWH: 2.8 x 1.78 x 0.66 inches (PWM module)
Accepts wide range of Voltage Input: 12V~30V (18V and 24V are recommended)
Input: female 5.5 x 2.1mm charger tip (connects to solar panel)
Output: attached clamps (connects to battery)
Maximum Input Power: 120W*
Regulated Output: 11V~13.2V
Maximum Output Power: 120W (12V@10A)
Maximum Conversion Efficiency: 89%
Battery Overvoltage Protection: overvoltage protection voltage is 16V, overvoltage return voltage is 15V
Battery Overdischarge Protection: overdischarge protection voltage 11.1V, overdischarge return voltage 12V
Standby Power Consumption: less than 10mA, 5~8mA
Working Temperature: -31°F to 113°F (-35°C to 45°C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C)
* Example: one Antigravity XS-100 or two XS-60 solar panels can be used with this charger. For other brands, make sure the solar panel or combined solar panel setup is 120W or less.
Operation
Connect the Charger tip to the Solar Panel.
Connect the Charger clamps to the Battery making sure Polarity is correct:
Red Clamps to Positive (+) Battery Connection
Black Clamps to Negative (-) Battery Connection
State of Charge Indicators
LED1: 20%
LED2: 40%
LED3: 60%
LED4: 80%
LED5: 100%
Error Indicators
If LED1 flickers: the battery is under-voltage, battery voltage is insufficient, until the battery voltage rises to above 12.6V
LED4, 5 flashing: overvoltage, battery voltage more than 16V, battery and charger will stop charging until battery is below 15V
