Description

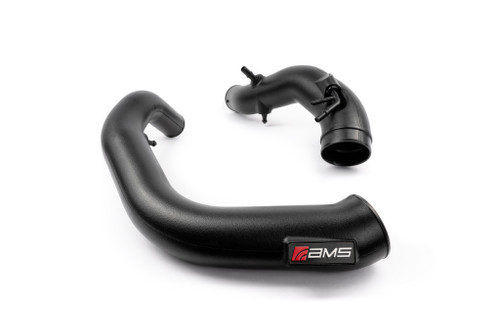

Upgrade the airflow and performance of your truck with the AMS Performance Turbo Inlet Tubes for 2021+ Ford F-150 and Ford Raptor 3.5L EcoBoost. These high-performance inlet tubes are engineered to eliminate the restrictive factory bottleneck between the intake system and turbochargers, allowing significantly improved airflow, reduced pressure drop, and increased turbo efficiency.
The factory inlet tubes on the 3.5L EcoBoost platform limit airflow due to tight packaging and small internal diameter. AMS redesigned the system with a much larger cross-section and smooth organic flow paths, increasing airflow capacity by up to 158% compared to OEM. This allows the turbochargers to operate with lower shaft speeds, reduced temperatures, and less stress while supporting higher horsepower levels when tuned.
These inlet tubes are designed to integrate seamlessly with the factory intake system and most aftermarket intakes while retaining all OEM fittings and connections. The result is a clean OEM-style installation with a measurable performance improvement.
Features
-
Up to 158% larger cross-section than OEM inlet tubes
-
Up to 2.6 PSI less turbo inlet restriction at equivalent power levels
-
Up to 42.4% less pressure drop at turbo compressor covers vs stock
-
Improved airflow for higher horsepower potential
-
Smooth organic tube shape for optimal airflow direction changes
-
Wire-reinforced silicone couplers with alignment notches
-
Compatible with OEM intake and most aftermarket intake systems
-
Retains all factory fittings and connections
-
Reduces turbocharger workload and stress
-
Lower charge air and exhaust gas temperatures
-
Balanced airflow between both turbochargers
-
OEM-style appearance with high-quality materials
Engineered for Maximum Airflow
AMS engineers identified a major restriction in the factory turbo inlet design and increased the internal diameter from roughly 40 mm to over 65 mm. This dramatically increases airflow capacity while maintaining smooth transitions into the turbo compressor housing.
Extensive CAD design, dyno testing, and real-world validation were used to minimize pressure drop and ensure consistent airflow across both turbochargers. The result is improved efficiency, lower turbo shaft speed, and more headroom for performance tuning.
Data-Driven Testing
Testing on a 2022 F-150 Raptor 3.5L EcoBoost equipped with AMS intake and intercooler upgrades showed clear performance improvements. Reduced inlet restriction allowed the turbochargers to produce the same boost with lower pressure ratios, resulting in lower compressor outlet temperatures, reduced turbine pressure, and improved overall engine efficiency.
Flowbench testing confirmed the AMS inlet tubes provide significantly less restriction than stock and competitor designs, making them one of the highest-flowing inlet solutions available for the 3.5L EcoBoost platform.
Product Notes
-
Works with OEM intake box
-
Works with most aftermarket intake systems
-
Not compatible with PowerBoost 3.5L engines
Fitment
-
2021+ Ford F-150 with 3.5L EcoBoost
-
Fits XL
-
Fits XLT
-
Fits STX
-
Fits Lariat
-
Fits King Ranch
-
Fits Platinum
-
Fits Limited
-
Fits Tremor
-
Excludes PowerBoost models
-
2021+ Ford F-150 Raptor with 3.5L EcoBoost
