Description

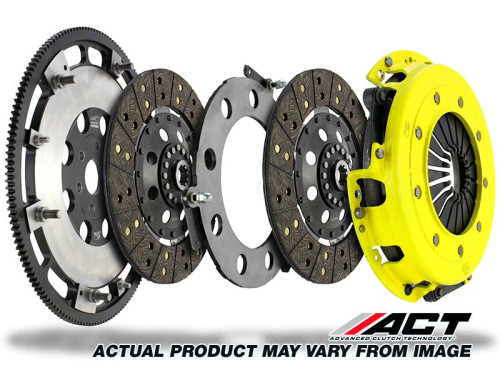

ACT Race Twin Disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACTs sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. ACT sintered iron race discs feature top grade rivets and are carefully selected for maximum strength. ACT sintered iron discs are extremely durable and heavy, and have very harsh engagement. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. ACT Twin Disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing/bushing and release bearing.
Details:
Use: Recommended for cars using clutchless shifting or drag racing transmissions
Feel: A stiff to very stiff pedal feel; aggressive engagement with high gear rattle
Life: True bolt-in kit with no modifications needed
Quality: Chrome-moly hub is heat-treated for strength and durability. Pressure plate and Flywheel are dynamically computer balanced for trouble-free installation and smooth operation at high RPM
Specifications:
Part Number: T1RR-M02
Torque Capacity: 770 ft/lbs
Clamp Load Increase: 203%
Spline Count: 20
Spline Size: 7/8"
Disc Diameter: 184 mm
Disc Diameter: 7.2 inches
Weight: 17.4 lbs
Warranty: 90 days
