Description

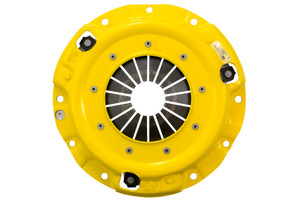

ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.
Details:
Use: Recommended for street and race use
Feel: A moderate to stiff pedal feel
Life: Longer clutch life achieved through ACT's exclusive diaphragm design
Quality: Quiet, trouble-free operation by use of strong drive straps. All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
Specifications:
Part Number: MZ010X
UPC Code: 837055000361
Torque Capacity: 440 ft/lbs
Clamp Load Increase: 80%
Spline Count: 23
Spline Size: 1"
Weight: 13.8 lbs
Warranty: 90 days
