Description

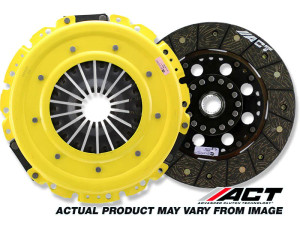

This Performance Street Kit features an Xtreme Pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance Street Rigid-hub discs feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACTs Street Rigid-hub discs provide race-proven performance with street manageability.
Details:
Use: Recommended for street and race use
Feel: A moderate to stiff pedal feel; smooth engagement with stock to low gear rattle
Life: Longer clutch life achieved through ACT's exclusive diaphragm design
Quality: Premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces. All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
Specifications:
Part Number: HA3-XTSD
Torque Capacity: 385 ft/lbs
Clamp Load Increase: 95%
Spline Count: 24
Spline Size: 1 1/32"
Disc Diameter: 224 mm
Disc Diameter: 8.8 inches
Weight: 15.8 lbs
Warranty: 90 days
