Description
The ACT Mod-Twin 225 HD Rigid Race Clutch Kit is designed for high-powered AWD race vehicles that require exceptional torque holding capability, rapid gear changes, and uncompromising durability. Engineered specifically for the Nissan Skyline GT-R R34, this competition-focused twin-disc clutch system combines dual ceramic friction surfaces with a rigid chrome-moly Mono-Drive hub to deliver maximum power transfer and outstanding performance in demanding motorsports environments.
Capable of handling up to 895 ft-lbs of torque, the Mod-Twin 225 HD Rigid Race Kit provides approximately 123% greater torque capacity than the factory clutch system. The ceramic puck-style friction discs deliver a high coefficient of friction and exceptional thermal capacity, making this clutch ideal for repeated aggressive launches and sustained high-load racing conditions.
The rigid Mono-Drive hub features a heat-treated chrome-moly construction with a continuous spline design for maximum strength, durability, and improved transmission input shaft life. Its lightweight rigid architecture provides direct engagement and faster shifts, making it an excellent choice for drag racing, road racing, and rally competition.
Features
- Twin-disc racing clutch system for high-horsepower AWD applications
- Rated for up to 895 ft-lbs of torque capacity
- Approximately 123% greater torque capacity than OE clutch systems
- Heavy Duty pressure plate design
- Dual ceramic friction surfaces for maximum grip and heat resistance
- Rigid chrome-moly Mono-Drive hub for direct torque transfer
- Continuous spline hub design enhances durability and input shaft life
- Lightweight rigid hub construction for quicker shifts
- High friction coefficient for aggressive racing applications
- Superior heat capacity for repeated competition use
- Exclusive four-stage heat-treated diaphragm spring
- CNC-machined and dynamically balanced flywheel included
- Fully rebuildable modular clutch design
- Replacement components available separately
- SFI 1.2 certified
- 100% clamp-load tested and dynamically balanced
- Designed for drag racing, road racing, and rally competition

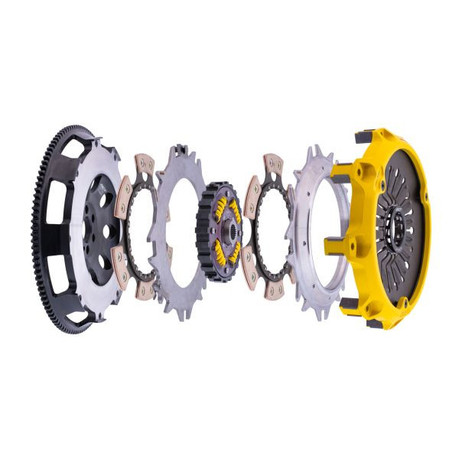

Included Components
- CNC-machined flywheel
- Pressure plate cover
- Diaphragm spring
- Clutch face
- Puck-style ceramic friction plates
- Rigid Mono-Drive chrome-moly hub
- Floater plate
- Patented Monoloc Collar
- Release bearing
- Alignment tool
- Pilot bearing (when required)
Performance Characteristics
Engagement Feel
- Predictable aggressive engagement
- Light pedal effort
- Quick shifting performance
- Possible start-off judder
- Mild to moderate transmission gear noise
Durability
- Forged aluminum cover construction
- Heat-treated chrome-moly rigid hub
- Hardened wear points
- Premium ceramic friction materials
- Designed to withstand extreme racing conditions
Quality Engineering
- High friction coefficient for superior torque transfer
- Excellent heat management and thermal stability
- Precision-balanced components
- Consistent performance under extreme loads
- Fully serviceable and rebuildable design
Specifications
| Specification | Details |
|---|---|
| Product | ACT Mod-Twin 225 Heavy Duty Rigid Race Clutch Kit |
| Part Number | T1R-N04 |
| Torque Capacity | 895 ft-lbs |
| Torque Capacity Increase Over OE | 123% |
| Disc Material | Ceramic |
| Disc Diameter | 8.8 in (225 mm) |
| Disc Diameter | 225 mm |
| Input Shaft Diameter | 1 in |
| Pressure Plate Type | Heavy Duty |
| Product Weight | 29.5 lbs |
| SFI Certification | 1.2 |
| Recommended Use | Drag Racing, Road Racing, Rally Racing |
| Warranty | 12 Months |
| UPC | 00842385028626 |
Vehicle Fitment
Nissan Skyline GT-R R34 (JDM)
- 1999 Nissan Skyline GT-R R34 [JDM] – 2.6L Inline-6 Turbocharged (RB26DETT), AWD
- 2000 Nissan Skyline GT-R R34 [JDM] – 2.6L Inline-6 Turbocharged (RB26DETT), AWD
- 2001 Nissan Skyline GT-R R34 [JDM] – 2.6L Inline-6 Turbocharged (RB26DETT), AWD
- 2002 Nissan Skyline GT-R R34 [JDM] – 2.6L Inline-6 Turbocharged (RB26DETT), AWD
Why Choose the ACT Mod-Twin 225 HD Rigid Race?
The ACT Mod-Twin 225 HD Rigid Race Clutch Kit is built for racers seeking maximum drivetrain efficiency, aggressive engagement, and rapid gear changes. The combination of dual ceramic friction discs and a rigid chrome-moly Mono-Drive hub provides direct power transfer and outstanding durability under extreme racing conditions. Backed by ACT's proven engineering, SFI certification, and fully rebuildable modular construction, this clutch kit is an ideal upgrade for high-performance Nissan Skyline GT-R R34 drag racing, road racing, and rally applications.
