Description

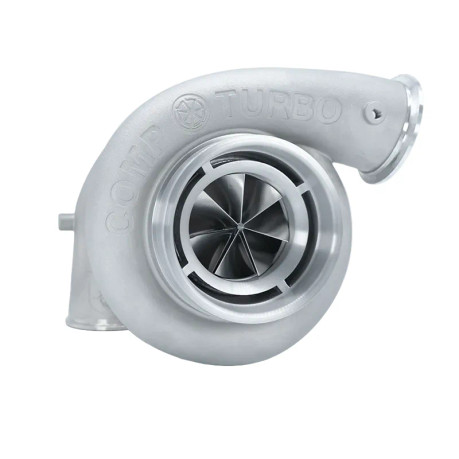

The Comp Turbo CT6RX-94106 Triplex Ceramic Ball Bearing Oil Lubricated Turbocharger is engineered for extreme high-horsepower applications demanding maximum airflow, durability, and rapid response. Rated for up to 2400 horsepower, this turbocharger utilizes Comp Turbo’s patented Triplex Ceramic Ball Bearing System to reduce friction, improve spool characteristics, and increase longevity compared to traditional journal bearing designs.
Designed for both aggressive street builds and professional motorsports use, the CT6RX-94106 features a lightweight billet aluminum center section, a high-efficiency CTRX Ultra Slim Hub 94mm compressor wheel, and a robust 9-blade 106mm turbine wheel. Its oil-lubricated bearing system ensures reliable performance under sustained high boost and extreme operating conditions.
Fully rebuildable and upgradeable, the CT6RX-94106 delivers consistent, high-speed boost with minimal lag, making it an ideal solution for serious racers and high-output engine platforms.
Features
• Patented Triplex Ceramic Ball Bearing System for smoother operation and faster spool
• Designed for high-performance street and track applications
• Lightweight billet aluminum center section
• CTRX Ultra Slim Hub compressor wheel (94mm)
• High-flow 9-blade turbine wheel (106mm)
• Standard rotation configuration
• Available with T6 and V-band inlet turbine housings
• Fully rebuildable and upgradeable
Power & Engine Specifications
• Minimum Horsepower: 1000 HP
• Maximum Horsepower: 2400 HP
• Minimum Engine Displacement: 3.0L
• Maximum Engine Displacement: 12.0L
Compressor Housing Specifications
• Inlet Diameter: 6.0 in
• Outlet Diameter: 3.5 in
• A/R Ratio: 0.88
Compressor Wheel Specifications
• Compressor Inducer Diameter: 94 mm
• Compressor Major Diameter: 140 mm
Bearing Housing Fitting Threads
• Oil Feed Port: 1/8 NPT Female
• Oil Drain Port: 1/2 NPT Female
Turbine Wheel Specifications
• Turbine Inducer Diameter: 112 mm
• Turbine Exducer Diameter: 106 mm
2-Year Warranty
All Comp Turbo turbochargers include a 2-Year Warranty covering:
• Defects in materials and workmanship
• Repair or replacement during the warranty period at no additional cost
Warranty Terms
• Warranty coverage is valid for two years from the date of purchase
• Applies only to turbochargers operated under proper installation, maintenance, and usage conditions
Comp Turbo’s warranty reflects a commitment to quality, reliability, and customer confidence in extreme performance environments.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
