Description

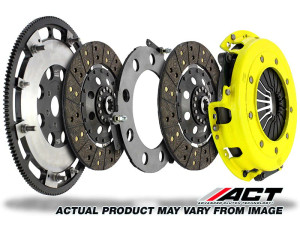

ACT Street Twin Disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. Exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance Street Rigid-hub discs feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT Twin Disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing/bushing and release bearing.
Details:
Use: Recommended for high horespower street or race use
Feel: A moderate to stiff pedal feel; smooth engagement with stock to low gear rattle
Life: Offers twice the number of disc surfaces for better wear, heat capacity and longer life
Quality: Premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces. Pressure plate and Flywheel are dynamically computer balanced for trouble-free installation and smooth operation at high RPM
Specifications:
Part Number: T2S-F05
Torque Capacity: 970 ft/lbs
Clamp Load Increase: 96%
Spline Count: 23
Spline Size: 1"
Disc Diameter: 266 mm
Disc Diameter: 10. inches
Weight: 46.4 lbs
Warranty: 90 days
