Mishimoto Universal Cooling Kits – Oil Coolers & Heat Exchanger with Fan

17th Jun 2025

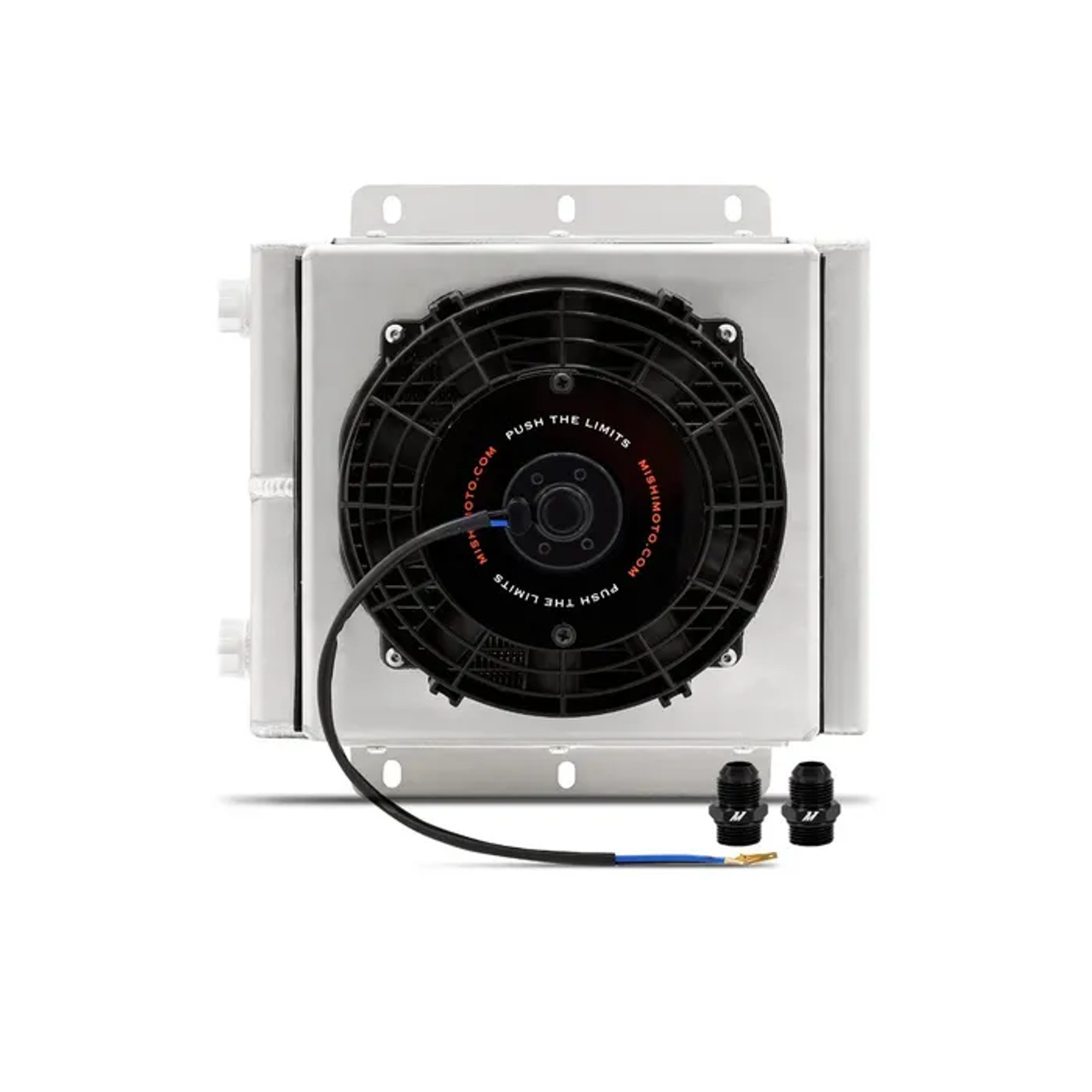

Mishimoto Universal Oil Cooler Kit - 23-Row Cooler with 8" Fan - misMMOC-23-K

Order link:

https://x-ph.com/mishimoto-universal-oil-cooler-kit-23-row-cooler-with-8-fan-mismmoc-23-k/

The Mishimoto Universal Oil Cooler Kit - 23-Row Cooler with 8" Fan (misMMOC-23-K) delivers high-efficiency cooling for oil, transmission fluid, or coolant in a compact, universal design. Engineered for enhanced performance, this cooler features a dual-pass, 68mm tube-and-fin construction and a powerful 8” slim fan integrated into a durable aluminum shroud.

Built to withstand high-performance demands, this universal oil cooler helps prevent engine or transmission damage caused by overheating. It's pre-assembled out of the box and includes all necessary fittings and mounting hardware for faster installation.

FITMENT

This Mishimoto universal oil cooler kit is compatible with a wide range of performance cars, trucks, and electric vehicles. Fits most models from 1990–2025.

This product is not vehicle-specific and is designed for universal applications where a 23-row cooler with 8” fan can be installed.

Key Features

  • Universal fitment ideal for performance cars, trucks, and electric vehicles
  • Dual-pass 23-row design for maximum surface area and efficient heat transfer
  • All-aluminum, corrosion-resistant construction
  • 68mm strutted tube style core for enhanced durability
  • 8” slim fan and aluminum fan shroud included
  • Female -10 ORB inlet and outlet ports
  • Compatible with oil, coolant, and transmission fluid
  • Fully assembled for easy, out-of-the-box installation
  • Includes (2) 10AN fittings, brackets, and mounting hardware
  • Optional push-on -10ORB to 3/4" hose barb fittings available separately
  • Mishimoto Lifetime Warranty

Technical Specifications

  • Rows: 23
  • Core Type: Tube-and-Fin
  • Core Height: 7.96 in
  • Core Length: 12.35 in
  • Core Width: 4.23 in
  • Inlet/Outlet: 7/8"-14 ORB
  • Fan CFM: 600
  • Fan Amp Draw (Start): 8
  • Max Operating Pressure: 120 PSI

What’s Included

  • 23-row oil cooler with pre-mounted 8” fan
  • Aluminum fan shroud
  • (2) -10AN fittings
  • Mounting brackets and hardware
  • Mishimoto Lifetime Warranty

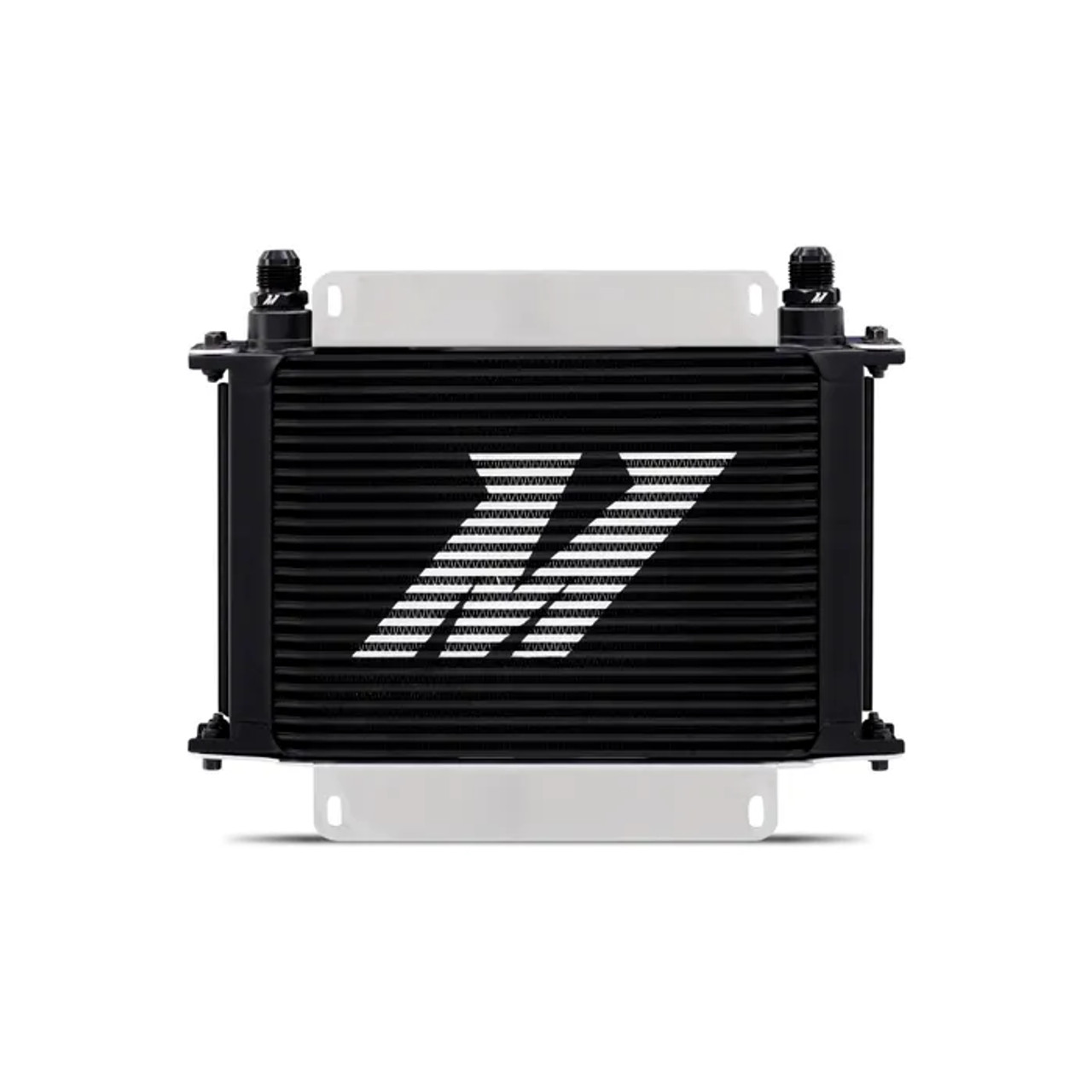

Mishimoto Universal Oil Cooler Kit - 25-Row Cooler with 8" Fan - misMMOC-25-K

Order link:

https://x-ph.com/mishimoto-universal-oil-cooler-kit-25-row-cooler-with-8-fan-mismmoc-25-k/

The Mishimoto Universal Oil Cooler Kit - 25-Row Cooler with 8" Fan (misMMOC-25-K) provides superior fluid cooling in a stacked-plate aluminum construction. Designed for high-performance vehicles, this cooler effectively manages engine oil, transmission fluid, or coolant temperatures under demanding conditions.

Featuring a 25-row stacked plate layout and a powerful 8” slim fan, this fully assembled kit is engineered for maximum cooling efficiency and reduced risk of overheating. The corrosion-resistant aluminum build and universal compatibility make it a strong addition to any cooling system.

FITMENT

This Mishimoto universal oil cooler kit is compatible with a wide range of performance cars, trucks, and electric vehicles. Fits most models from 1990–2025.

This product is universal and intended for non-vehicle-specific installations where a 25-row oil cooler and 8” fan can be mounted.

Key Features

  • Universal fitment suitable for performance cars, trucks, and electric vehicles
  • 25-row stacked plate cooler design enhances heat dissipation
  • Integrated 8” slim fan for high airflow and compact performance
  • Female -10AN ports to accommodate a wide variety of fittings
  • Durable, all-aluminum construction resists corrosion
  • Compatible with engine oil, transmission fluid, and coolant
  • Fully assembled for faster and easier installation
  • Includes (2) 10AN fittings, mounting brackets, and hardware
  • Mishimoto Lifetime Warranty for long-term protection

Technical Specifications

  • Rows: 25
  • Core Construction: Tube-and-Fin
  • Overall Height: 7.32 in
  • Overall Length: 12.99 in
  • Overall Width: 2.01 in
  • Inlet Size: 7/8"-14 ORB
  • Outlet Size: 7/8"-14 ORB
  • Fan CFM: 600
  • Fan Amp Draw (Start): 8
  • Maximum Operating Pressure: 120 PSI

What’s Included

  • 25-row oil cooler with pre-installed 8” slim fan
  • Aluminum fan shroud
  • (2) -10AN fittings
  • Mounting brackets and hardware
  • Mishimoto Lifetime Warranty

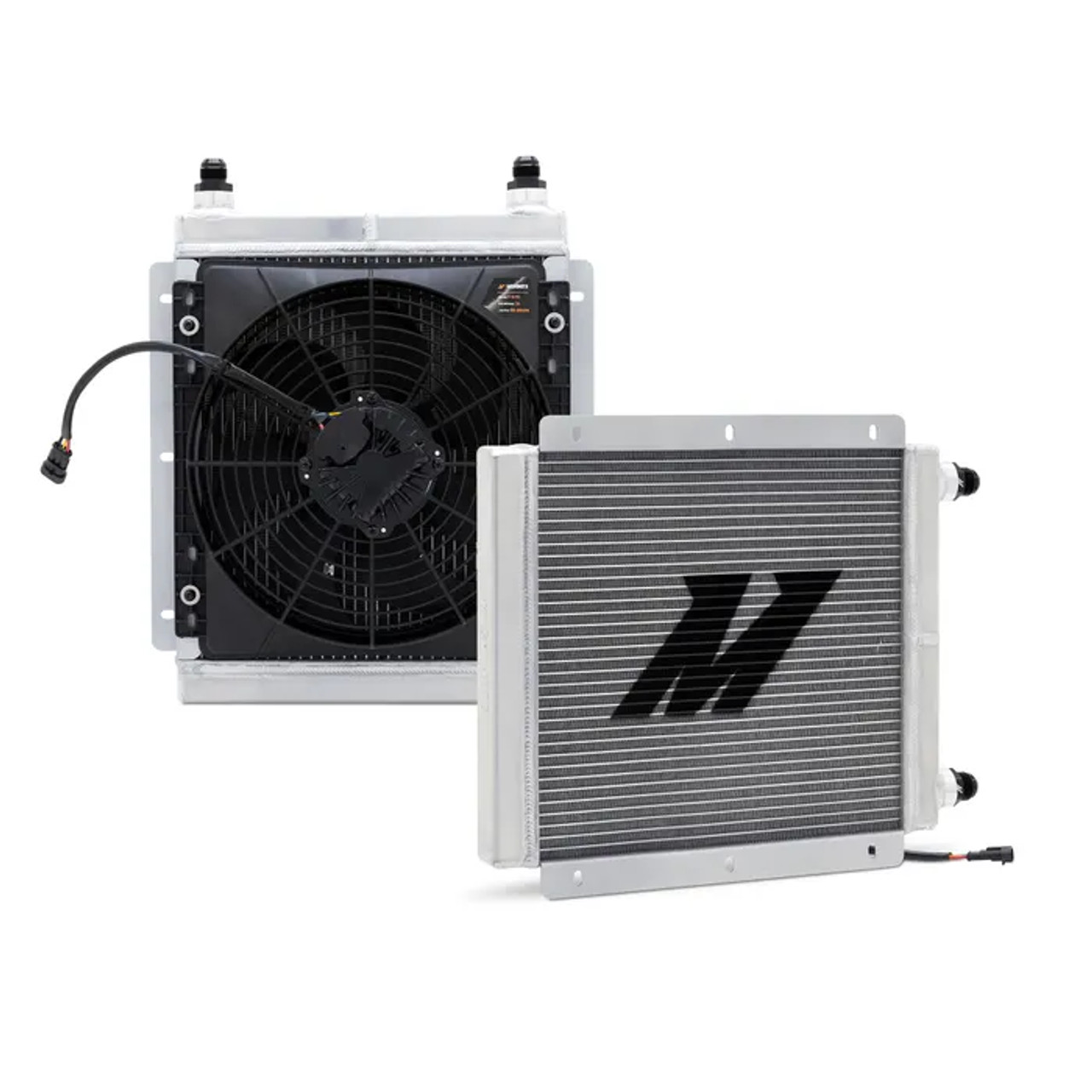

Mishimoto Universal Heat Exchanger Kit With Integrated 12" Brushless Fan - misMMHE-UNI-BRLS-K

Order link:

https://x-ph.com/mishimoto-universal-heat-exchanger-kit-with-integrated-12-brushless-fan-mismmhe-uni-brls-k/

The Mishimoto Universal Heat Exchanger Kit With Integrated 12" Brushless Fan (misMMHE-UNI-BRLS-K) offers powerful, high-efficiency cooling for a wide variety of demanding applications—including electric vehicle systems, coolant loops, oil circuits, and more.

Built around a robust tube-and-fin style core, this heat exchanger is engineered to handle high pressures and deliver consistent long-term performance. A pre-mounted 12” brushless fan rated for 1,177 CFM ensures excellent airflow, while the integrated shroud maximizes heat dissipation even under heavy load.

The system includes all necessary mounting brackets and fittings and is compatible with Mishimoto’s Universal PWM Fan Controller (sold separately) for advanced thermal management.

FITMENT

This Mishimoto universal heat exchanger kit is compatible with a broad range of custom performance builds, electric vehicles, and fluid cooling systems. Suitable for most custom-fit or modified vehicles from 1990–2025.

This product is universal and non-vehicle-specific. It is designed for installations where a high-capacity 12” brushless fan heat exchanger can be securely mounted.

Key Features

  • Universal design suitable for electric vehicle cooling, coolant systems, oil cooling, and more
  • Integrated 12” brushless fan rated for 1,177 CFM
  • High-efficiency, tube-and-fin core for reliable long-term cooling
  • Durable construction engineered to withstand high pressures
  • Compatible with Mishimoto Universal PWM Fan Controller (controller sold separately)
  • Includes necessary fittings and mounting brackets
  • Mishimoto Lifetime Warranty

Technical Specifications

  • Rows: 34
  • Core Construction: Tube-and-Fin
  • Overall Height: 16.2 in
  • Overall Length: 18.1 in
  • Overall Width: 1.9 in
  • Inlet/Outlet Size: 1/16"-12 ORB
  • Fan CFM: 1177
  • Fan RPM Range: 900–3050
  • Amp Draw (Start): 1
  • Amp Draw (Running): 9.2
  • Max Amps: 12
  • Voltage Range: 9–16 VDC

What’s Included

  • Heat Exchanger with pre-installed 12” brushless fan
  • (2) Fittings
  • Mounting brackets and hardware
  • Mishimoto Lifetime Warranty
