CSF High-Performance Intercoolers for Ferrari, Lamborghini, Audi, and McLaren

18th Jun 2025

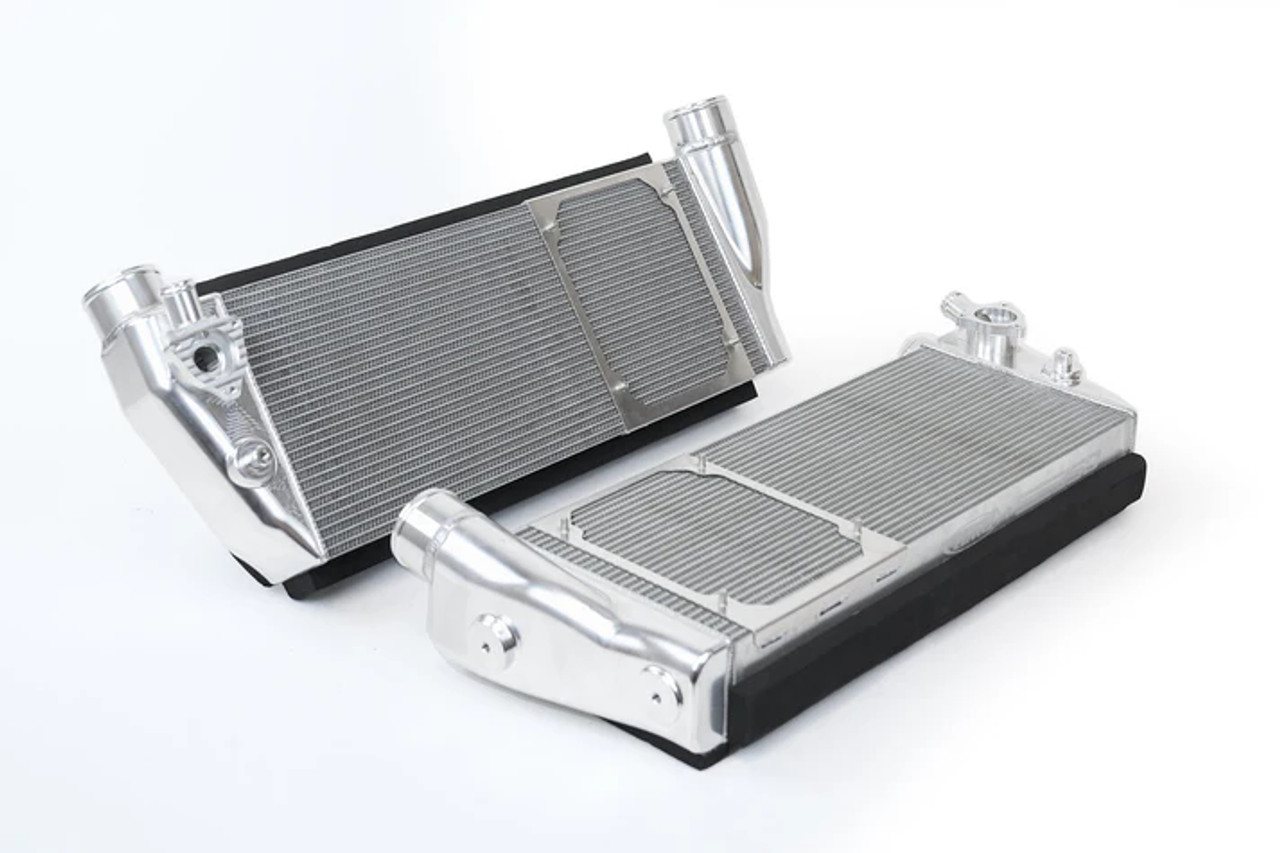

CSF Ferrari 488 / Pista / F8 Twin Intercooler Set - Raw Billet csf8210

Order link:

https://x-ph.com/csf-ferrari-488-pista-f8-twin-intercooler-set-raw-billet-csf8210/?showHidden=true

Maximize the performance of your Ferrari with the CSF Billet Twin Intercooler Set, engineered for the 488 GTB, 488 Pista, F8 Tributo, and Spider variants. Built in collaboration with PWR, this high-performance cooling system was designed to handle the intense demands of tuned and track-focused twin-turbo Ferrari V8s pushing 35 PSI of boost—even in factory form.

Unlike conventional aftermarket solutions that rely on oversized cores, the CSF system maintains factory fitment and dimensions while drastically improving cooling efficiency through Formula-1-grade core technology. These PWR-manufactured rolled tube cores feature internal fins for optimized airflow, heat transfer, and rapid IAT recovery. This results in elimination of heat soak, improved power consistency, and higher resistance to temperature spikes under load.

Designed as a true drop-in upgrade, these intercoolers require no modifications and are fully compatible with all OEM components—including mounts, shrouds, BPV/BOV, and fans. CSF even includes high-density foam seals to maintain OEM-level airflow control and efficiency.

Each unit is crafted with CNC-machined billet aluminum end tanks, 100% TIG welded for superior strength and long-term durability under high boost and racing conditions. The raw billet finish offers a motorsport-grade aesthetic, while an optional Thermal Black Heat Dispersion Coating is available for enhanced thermal radiation and stealth appearance.

Key Features:

  • Sold as a pair – Left & Right intercoolers

  • Formula-1 performance-grade PWR cores – 2-row rolled tubes with internal fins

  • 100% TIG-welded CNC billet aluminum end tanks – Engineered for high boost

  • Eliminates heat soak and reduces IATs – Ensures consistent power delivery

  • OEM-style connections – Seamless integration with factory charge piping

  • Integrated BPV/BOV connection & OEM-style fan shroud

  • High-density foam sealing – Factory-quality fit and finish

  • True plug-and-play installation – No cutting or modifications required

  • Developed with top Ferrari tuning firms – M-Engineering, World Motorsports, Voodoo Design

  • Made in the USA by PWR North America

Vehicle Fitment:

  • 2016–2019 Ferrari 488 GTB – Turbocharged 3.9L V8

  • 2016–2019 Ferrari 488 Spider – Turbocharged 3.9L V8

  • 2019–2021 Ferrari 488 Pista & Pista Spider – Turbocharged 3.9L V8

  • 2020–2022 Ferrari F8 Tributo & F8 Spider – Turbocharged 3.9L V8

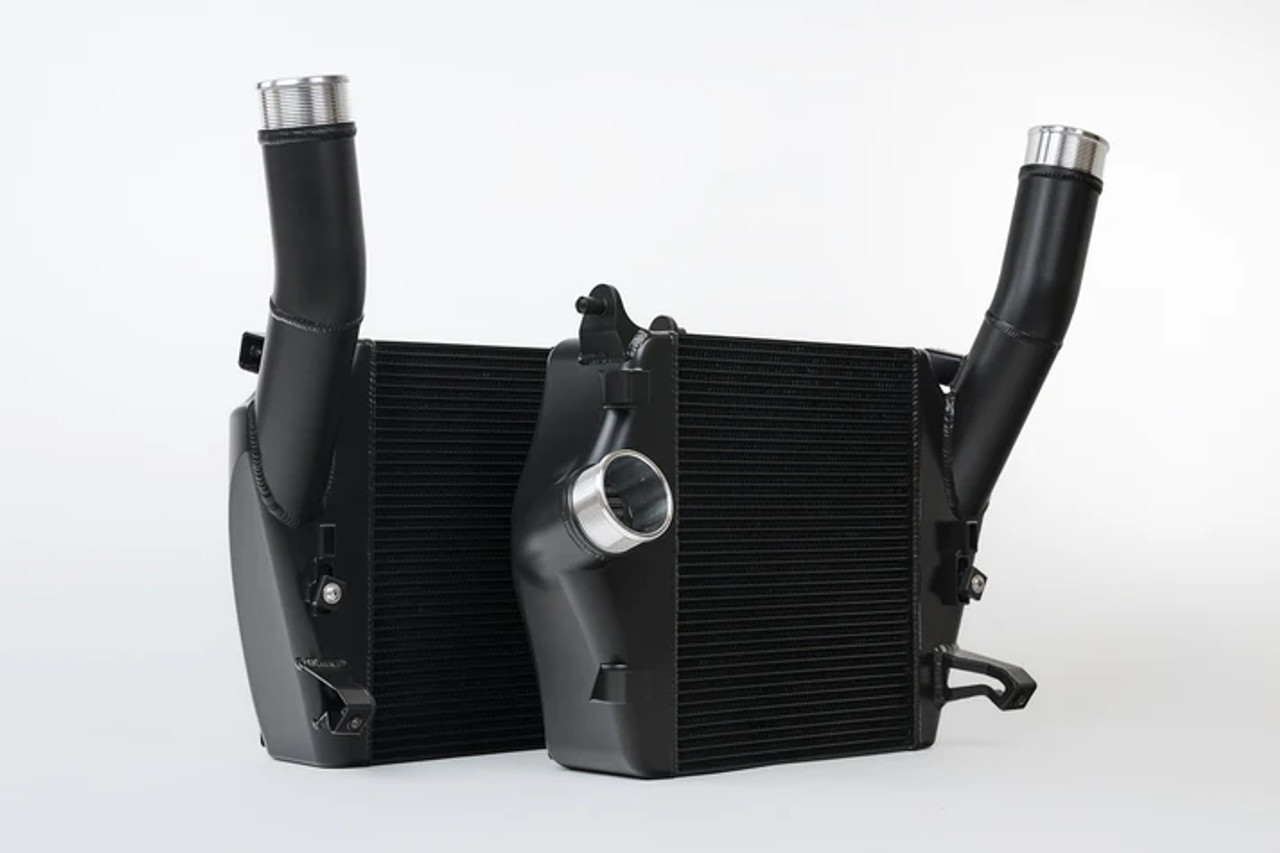

CSF 2019+ Lamborghini Urus / 2020+ Audi RS Q8 / SQ8 / SQ7 High Performance Intercooler System- Black csf8211

Order link:

https://x-ph.com/csf-2019-lamborghini-urus-2020-audi-rs-q8-sq8-sq7-high-performance-intercooler-system-black-csf8211/?showHidden=true

Upgrade your Lamborghini Urus, Audi RS Q8, or Porsche Cayenne Turbo with the CSF Thermal Dispersion Black Twin Intercooler Set, engineered for peak performance and cooling efficiency under the most demanding conditions. Developed in collaboration with Pacific German and tested by VF Engineering, these intercoolers are built to handle increased boost levels, track conditions, and performance tunes without compromising fitment or reliability.

At the heart of the system are Formula-1 grade intercooler cores, custom-built by PWR featuring two rows of rolled cooling tubes with internal fins—delivering unmatched intake air temperature (IAT) reduction and heat soak resistance compared to traditional bar & plate or tube & fin designs.

The CNC-machined billet aluminum end tanks are TIG-welded to perfection and come coated in CSF’s exclusive Thermal Dispersion Black ceramic finish for optimized heat rejection. A one-piece welded charge pipe replaces the factory O-ring design—a known weak point that often causes boost leaks and check engine lights.

Designed as a true drop-in fit, this system utilizes all OEM mounting points, hoses, shrouds, and fan assemblies with no modifications required. Whether you’re building for high-performance street driving, tuning for power gains, or prepping for track days, the CSF intercoolers are built to perform.

Key Features:

  • Direct bolt-on OEM replacement

  • Thermal Dispersion Black ceramic coating for improved heat dissipation

  • PWR Formula-1 grade cores with rolled tubes and internal fins

  • One-piece TIG-welded aluminum charge pipe (replaces failure-prone factory design)

  • CNC-machined billet end tanks for durability under high boost

  • Integrated 1/8” NPT methanol injection port (plug included)

  • Manufactured and pressure tested in the USA at PWR North America

  • Reuses all OEM shrouds, hoses, fans, and mounting points

  • Tested and proven by Pacific German and VF Engineering

  • CSF Part #: 8211 (Thermal Black) / 8211R (Raw Billet Finish)

Vehicle Fitment:

Audi

  • 2020–2025 RS Q8 (4M)

Lamborghini Urus

  • 2019–2025 Urus

  • 2024–2025 Urus Performante

  • 2024–2025 Urus S

  • 2025 Urus SE

Porsche Cayenne (9Y0)

  • 2019–2023 Cayenne GTS / GTS Coupe

  • 2019–2023 Cayenne Turbo / Turbo Coupe

  • 2022–2025 Cayenne Turbo GT Coupe

Warranty Information:

Manufacturer: Cooling Systems & Flexibles (CSF)
Warranty: Limited Lifetime Warranty to the original purchaser
Covers manufacturing defects under normal use and service. Proof of original purchase required.

CSF McLaren 720S / 765LT / 750S / GT / GTS Charge-Air-Coolers csf8352

Order link:

https://x-ph.com/csf-mclaren-720s-765lt-750s-gt-gts-charge-air-coolers-csf8352/?showHidden=true

Elevate the performance and reliability of your McLaren with the CSF Charge-Air-Cooler Set, designed for the 720S, 765LT, 750S, GT, and GTS. Building upon the success of the original CSF intercoolers for the 720S, this newly reengineered 2024 design brings improved fitment for Spider models and upgraded durability under extreme conditions—all while maintaining up to 99% thermal efficiency.

Developed in partnership with PWR, a world-renowned manufacturer of cooling systems used in Formula 1, WRC, and MotoGP, this next-generation CSF system offers unmatched performance for the 4.0L twin-turbo V8 (M840T). With a strong emphasis on compactness and durability, this set delivers powerful, consistent charge air cooling whether you're on the street, racetrack, or drag strip.

Each unit is handcrafted in the USA using aerospace-grade bar and plate cores, which provide three times as many internal fin rows as OEM tube and fin designs. The result is faster IAT recovery, no pressure drop, and significantly higher resistance to boost spikes. These cores are manufactured to extremely tight tolerances using ultra-thin materials (down to 0.3mm), enabling optimal heat exchange without compromising strength.

The TIG-welded 100% aluminum end tanks are CNC-machined and pressure tested to 120 psi, ensuring superior durability compared to the factory's brazed tank joints. This construction eliminates a known OEM weak point and enables the system to withstand the demands of high-boost applications and power increases.

Key Features:

  • Sold as a matched pair – Left and Right Charge-Air-Coolers

  • Advanced PWR bar & plate cores – Built for motorsports-level performance

  • Up to 99% thermal efficiency – Dramatically improves IAT control

  • Pressure tested to 120 psi – Ideal for high-boost builds and racing use

  • 100% TIG-welded aluminum construction – Stronger than OEM brazed tanks

  • No pressure drop compared to factory system

  • Plug-and-play fitment – No modifications required

  • CNC-machined mounting brackets and OEM-style inlet/outlet connections

  • Hand-brushed satin finish – A premium look for engine bay presentation

  • Leak and pressure tested individually for guaranteed performance

  • Made in the USA – Designed and manufactured in collaboration with PWR

  • Limited Lifetime Warranty – Coverage for the original purchaser

Vehicle Fitment:

  • 2018–2023 McLaren 720S (Coupe & Spider)

  • 2023–2025 McLaren 750S (Coupe & Spider)

  • 2021–2024 McLaren 765LT

  • 2019–2023 McLaren GT

  • 2024–2025 McLaren GTS

Engine Compatibility: Turbocharged 4.0L V8 (M840T)

Warranty Information:

Manufacturer: Cooling Systems and Flexibles, Inc. (CSF)
Warranty: Limited Lifetime Warranty to the original purchaser
Covers manufacturer defects under normal use. Proof of purchase is required for claims.
