S&B Performance Upgrades – Ford Super Duty & Powerstroke 6.7L Air, Fuel & Intercooler Systems
16th Oct 2025

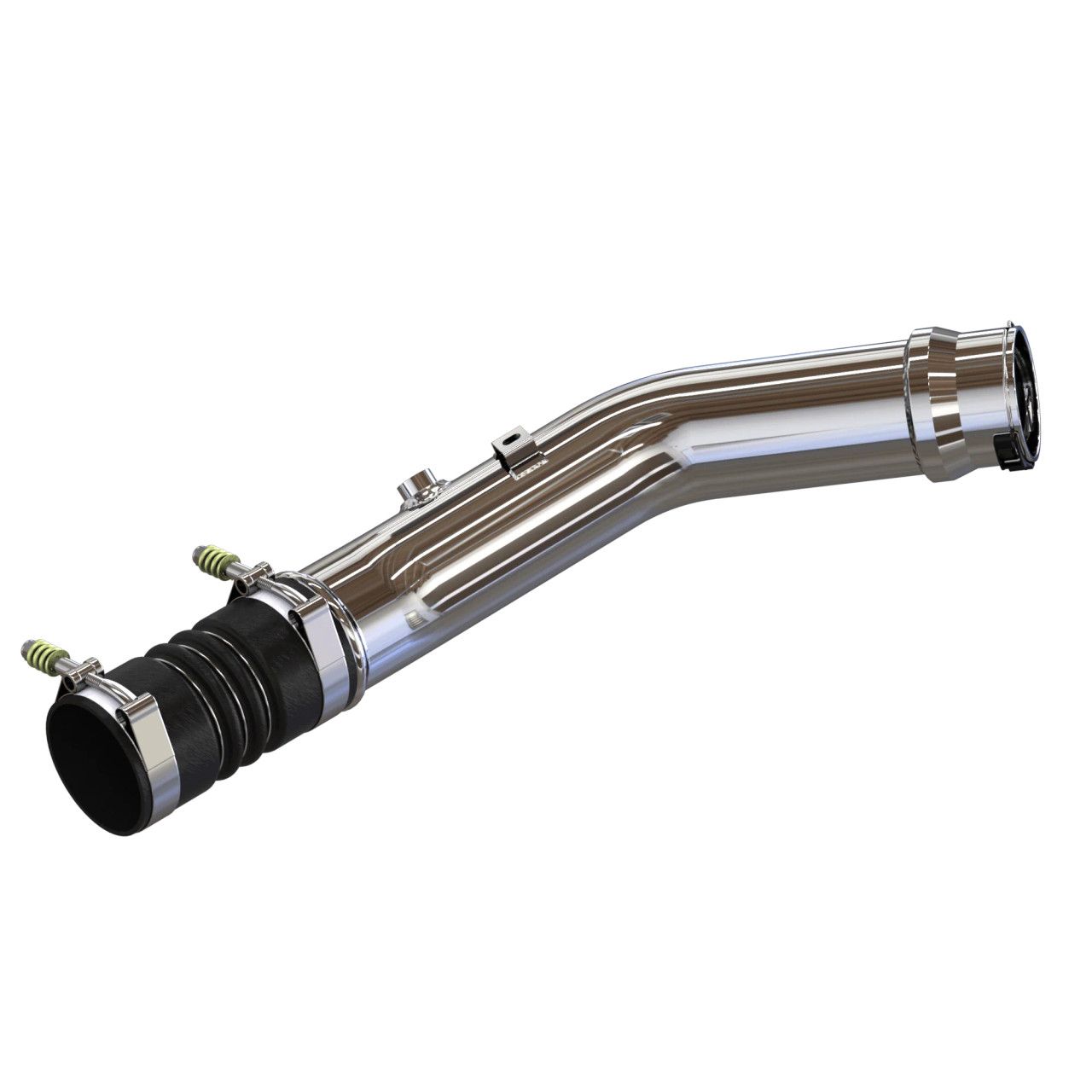

S&B Hot Side Intercooler Pipe for 2023-2026 Ford Powerstroke 6.7L High Output - 83-2005
Order link:
Upgrade reliability and boost airflow with the S&B Hot Side Intercooler Pipe engineered for the 2023–2026 Ford Powerstroke 6.7L High Output. The factory OEM intercooler pipe is known to fail under boost pressure, causing air leaks and power loss. This S&B replacement delivers stronger construction, improved throttle response, and increased airflow for better performance.
This high-performance charge air cooler (CAC) pipe is built from polished 3.0-inch aluminum tubing, offering 40% more airflow than the restrictive stock piping. The kit includes a 4-ply aramid-reinforced silicone hose with FKM lining and heavy-duty spring-loaded T-bolt clamps to ensure leak-free operation even under extreme towing or tuning conditions.
Benefits
-
40% larger airflow compared to OEM
-
Increased turbo efficiency and throttle response
-
Stronger and more reliable than factory plastic piping
-
Reduces risk of blowouts and boost leaks
-
Built to handle high-performance and towing applications
Construction Features
-
Polished 3.0" mandrel-bent aluminum pipe
-
4-ply aramid-reinforced silicone hose
-
FKM-lined for oil and heat resistance
-
Heavy-duty stainless steel spring-loaded T-bolt clamps
-
Direct bolt-on installation
Compliance
-
2023–2024 Ford F-250 / F-350
-
2025–2026 Ford F-250 / F-350
Vehicle Fitment
Fits the following vehicles:
-
2023 Ford F-250 Super Duty 6.7L Powerstroke High Output
-
2023 Ford F-350 Super Duty 6.7L Powerstroke High Output
-
2024 Ford F-250 Super Duty 6.7L Powerstroke High Output
-
2024 Ford F-350 Super Duty 6.7L Powerstroke High Output
-
2025 Ford F-250 Super Duty 6.7L Powerstroke High Output
-
2025 Ford F-350 Super Duty 6.7L Powerstroke High Output
-
2026 Ford F-250 Super Duty 6.7L Powerstroke High Output
-
2026 Ford F-350 Super Duty 6.7L Powerstroke High Output
S&B Fuel Sending Unit (For use with aftermarket lift pumps) for 2017-2026 Ford F250/F350, Crew Cab Short Bed, 6.7L Powerstroke - 86-1001
Order link:
Eliminate low-fuel level issues caused by aftermarket lift pumps with the S&B Fuel Sending Unit, designed for the 2017–2026 Ford F-250 and F-350 6.7L Powerstroke. When using high-performance lift pumps, the factory fuel pick-up can struggle at a quarter tank, starving the engine and triggering error codes. This S&B unit solves the problem, allowing you to safely drive to empty without fuel starvation.
The design features a Venturi Jet Pump system powered by your aftermarket external lift pump. It continuously keeps the fuel reservoir full, ensuring uninterrupted fuel delivery and preventing check engine lights. The unit is completely plug-and-play and installs without cutting, drilling, or modifying your OEM fuel tank or sending unit. Works with both OEM and S&B fuel tanks.
This sending unit is built using OEM-grade materials engineered to withstand aggressive diesel fuel environments. It has been rigorously tested in real-world low-fuel conditions to ensure long-term durability and performance.
Features
-
Allows full fuel usage — drive to empty with lift pumps
-
Stops fuel starvation issues at low tank levels
-
Prevents check engine lights caused by fuel pressure drop
-
Plug-and-play installation
-
No tank or sending unit modification required
-
Compatible with stock and S&B fuel tanks
-
OEM quick-connect fittings included
-
Durable construction using OEM-rated materials
-
Designed for aftermarket lift pumps only
-
Supports SuperCab Long Bed and Crew Cab Short Bed models
How It Works
-
Utilizes a Venturi Jet Pump powered by the lift pump
-
Maintains a full fuel reservoir under all conditions
-
Delivers consistent fuel pressure to the engine
Vehicle Fitment
Fits the following vehicles:
-
2017 Ford F-250 6.7L Powerstroke Diesel
-
2018 Ford F-250 6.7L Powerstroke Diesel
-
2019 Ford F-250 6.7L Powerstroke Diesel
-
2020 Ford F-250 6.7L Powerstroke Diesel
-
2021 Ford F-250 6.7L Powerstroke Diesel
-
2022 Ford F-250 6.7L Powerstroke Diesel
-
2023 Ford F-250 6.7L Powerstroke Diesel
-
2024 Ford F-250 6.7L Powerstroke Diesel
-
2025 Ford F-250 6.7L Powerstroke Diesel
-
2026 Ford F-250 6.7L Powerstroke Diesel
-
2017 Ford F-350 6.7L Powerstroke Diesel
-
2018 Ford F-350 6.7L Powerstroke Diesel
-
2019 Ford F-350 6.7L Powerstroke Diesel
-
2020 Ford F-350 6.7L Powerstroke Diesel
-
2021 Ford F-350 6.7L Powerstroke Diesel
-
2022 Ford F-350 6.7L Powerstroke Diesel
-
2023 Ford F-350 6.7L Powerstroke Diesel
-
2024 Ford F-350 6.7L Powerstroke Diesel
-
2025 Ford F-350 6.7L Powerstroke Diesel
-
2026 Ford F-350 6.7L Powerstroke Diesel
Compatible Configurations:
-
Crew Cab Short Bed
-
SuperCab Long Bed
-
For use with aftermarket lift pumps only
S&B Hot Side Intercooler Pipe for 2016-2026 Ford Powerstroke 6.7L - 83-2004
Order link:
Improve intercooler efficiency and boost reliability with the S&B Hot Side Intercooler Pipe for the 2016–2026 Ford 6.7L Powerstroke. The factory hot side pipe is known to fail under high boost pressure, causing air leaks and loss of power. S&B solves this issue with a high-strength aluminum charge air cooler (CAC) pipe designed for long-term durability and increased airflow.
This intercooler pipe features a 3.0-inch polished aluminum design, providing 40% more airflow than the restrictive OEM pipe. It includes a 4-ply aramid-reinforced, FKM-lined silicone coupler engineered to withstand extreme temperature and boost conditions. Heavy-duty spring-loaded stainless steel T-bolt clamps ensure a secure and leak-free connection.
This upgrade is ideal for towing, tuned trucks, and performance applications while remaining CARB compliant for street use.
Features
-
40% increase in airflow compared to stock
-
Strong and durable 3.0" aluminum construction
-
Replaces weak factory plastic intercooler pipe
-
Reduces risk of boost leaks and pipe blowouts
-
Enhances throttle response and turbo spool
-
4-ply aramid reinforced silicone hose
-
FKM liner for improved heat and oil resistance
-
Heavy-duty spring-loaded stainless steel T-bolt clamps
-
Direct bolt-on installation with OEM-style fitment
-
Will not fit 2023+ High Output models
Vehicle Fitment
Fits the following vehicles with 6.7L Powerstroke Diesel engine:
-
2016 Ford F-250
-
2017 Ford F-250
-
2018 Ford F-250
-
2019 Ford F-250
-
2020 Ford F-250
-
2021 Ford F-250
-
2022 Ford F-250
-
2023 Ford F-250
-
2024 Ford F-250
-
2025 Ford F-250
-
2026 Ford F-250
-
2016 Ford F-350
-
2017 Ford F-350
-
2018 Ford F-350
-
2019 Ford F-350
-
2020 Ford F-350
-
2021 Ford F-350
-
2022 Ford F-350
-
2023 Ford F-350
-
2024 Ford F-350
-
2025 Ford F-350
-
2026 Ford F-350
-
2016 Ford F-450
-
2017 Ford F-450
-
2018 Ford F-450
-
2019 Ford F-450
-
2020 Ford F-450
-
2021 Ford F-450
-
2022 Ford F-450
-
2023 Ford F-450
-
2024 Ford F-450
-
2025 Ford F-450
-
2026 Ford F-450
Note: Will not fit 2023 and newer High Output Powerstroke models.
S&B Open Air Intake for 2020-2026 Ford Super Duty, 6.7L Powerstroke - 75-6002
Order link:
Unleash maximum airflow and boost engine performance with the S&B Open Air Intake System for the 2020–2026 Ford Super Duty 6.7L Powerstroke. Engineered to significantly reduce air restriction, this intake system flows far better than stock to deliver improved throttle response, increased horsepower, and enhanced towing performance.
This system includes S&B’s largest air filter ever designed for the 6.7L Powerstroke, featuring an 8-layer cotton cleanable filter. The filter is housed in a black powder-coated steel cage for superior strength and long-lasting engine protection. The high-flow intake tube has been specifically designed with an oversized diameter to feed massive amounts of air to the turbo.
To maintain factory drivability, S&B includes a MAF sensor calibration insert to ensure proper air-to-fuel ratios with the OEM tuning. The intake also features a zinc-plated support bracket to secure the assembly and ensure long-term durability under heavy load and vibration.
Features
-
Maximum airflow for improved power and turbo response
-
Massive high-efficiency 8-layer cotton cleanable filter
-
Black powder-coated steel filter cage for durability
-
Oversized intake tube for unrestricted airflow
-
MAF sensor insert maintains factory engine calibration
-
No check engine lights
-
Added support bracket for secure mounting
-
Works with stock tuning or performance tuning
-
Easy access filter maintenance
-
Designed specifically for the 6.7L Powerstroke
Filter Type
-
Cotton Cleanable
S&B Low Profile Valance for 2023-2026 Ford Super Duty - 10 Pack - 71-1000-10
Order link:
Give your truck a cleaner, more aggressive front-end look with the S&B Low Profile Valance for 2023–2026 Ford Super Duty models. Designed as a direct replacement for the oversized factory valance found on 2WD and 4x4 trucks, this Tremor-style valance improves appearance while increasing front-end ground clearance.
The OEM front valance hangs a massive 7.5 inches below the bumper, reducing approach angle and limiting off-road capability. The S&B Low Profile Valance trims that length down to only 2.5 inches, giving you 5 inches of added ground clearance. Whether you are towing, off-roading, or just want a tougher stance, this valance delivers both performance and style.
Engineered from durable, high-quality materials, it installs using factory mounting points with no cutting or drilling required. This 10-pack is perfect for shops, installers, and bulk buyers looking for premium exterior upgrades for Ford Super Duty trucks.
Features
-
Tremor-style low profile front valance
-
Improves ground clearance by 5 inches
-
Reduces factory valance size from 7.5 inches to 2.5 inches
-
Sleek, aggressive front-end styling
-
Ideal for off-road, lifted, leveled, or work trucks
-
Direct bolt-on replacement
-
Uses factory mounting points
-
No modifications required
-
Sold as 10 pack
Vehicle Fitment
Fits the following vehicles:
-
2023 Ford F-250 6.7L Diesel
-
2024 Ford F-250 6.7L Diesel
-
2025 Ford F-250 6.7L Diesel
-
2026 Ford F-250 6.7L Diesel
-
2023 Ford F-350 6.7L Diesel
-
2024 Ford F-350 6.7L Diesel
-
2025 Ford F-350 6.7L Diesel
-
2026 Ford F-350 6.7L Diesel
-
2023 Ford F-250 7.3L Gas
-
2024 Ford F-250 7.3L Gas
-
2025 Ford F-250 7.3L Gas
-
2026 Ford F-250 7.3L Gas
-
2023 Ford F-350 7.3L Gas
-
2024 Ford F-350 7.3L Gas
-
2025 Ford F-350 7.3L Gas
-
2026 Ford F-350 7.3L Gas
-
2023 Ford F-250 6.8L Gas
-
2024 Ford F-250 6.8L Gas
-
2025 Ford F-250 6.8L Gas
-
2026 Ford F-250 6.8L Gas
-
2023 Ford F-350 6.8L Gas
-
2024 Ford F-350 6.8L Gas
-
2025 Ford F-350 6.8L Gas
-
2026 Ford F-350 6.8L Gas
