Burger Tuning BMW Wheel Spacers with 10 Bolts – XM G09, X5/X6, and F-Chassis Models
5th Aug 2025

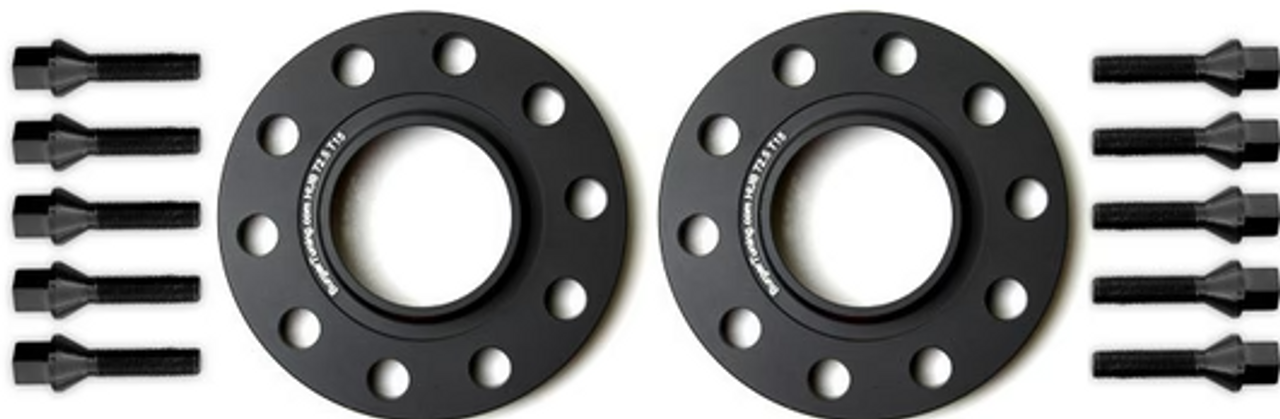

Burger Tuning BMW XM (G09) - Burger Motorsports Wheel Spacers w/10 Bolts
Order link:
Upgrade the appearance and handling of your BMW XM with these premium wheel spacers from Burger Motorsports. Designed specifically for the 2023+ G09 BMW XM and XM Label models, these spacers are engineered for a precise, vibration-free fit.
Aggressive Fitment, Enhanced Handling
Achieve a wider track for improved lateral grip, increased stability, and an aggressive stance. These spacers are ideal for fine-tuning your wheel offset, accommodating big brake kits, or simply filling out the wheel arches for a sportier look.
Precision Manufacturing
-
CNC-machined from lightweight 7075-T6 aerospace-grade aluminum
-
Anodized black finish for corrosion resistance and durability
-
Includes a packet of anti-seize compound for easy future removal
Hub-Centric Design
These spacers feature a hub-centric design to ensure perfect alignment with the factory hub and wheel bore, eliminating vibration and ensuring safe, balanced rotation.
Heavy-Duty Lug Bolts Included
Each set includes 10 extended 12.9-grade concentric floating seat lug bolts, zinc-coated for corrosion resistance and superior clamping force. These bolts exceed OE strength standards and are critical for safely securing the heavy XM wheels.
Recommended Sizing
-
Front: 15mm
-
Rear: 20mm
Easy Installation
Simply remove your wheels, slide on the spacers, and re-install using the included extended bolts. No modifications or special tools are required. A downloadable installation guide is available.
Fitment:
-
2023+ BMW XM G09 (4.4L S68)
-
2024+ BMW XM Label G09 (4.4L S68)
Specifications:
-
Bolt Thread: M14 x 1.25
-
Bolt Seat: Conical (Cone) / Concentric
-
Material: 7075-T6 Anodized Aluminum
-
Lug Bolts: 12.9 Grade, Zinc Coated, Extended
-
Torque Spec: 105 ft-lbs (142 Nm) – Re-torque after 50 miles
What’s Included:
-
(2) Wheel Spacers
-
(10) Extended 12.9 Grade Concentric Lug Bolts
-
(1) Packet of Anti-Seize Grease
Special Offer:
Receive a FREE BMW Wheel Pin Tool with the purchase of 2 pairs of wheel spacers. Just add two spacer kits and the wheel pin tool to your cart—the tool will be automatically discounted at checkout.
Burger Tuning X5/X6 Burger Motorsports BMW Wheel Spacers w/10 Bolts (E & F Chassis)
Order link:
Upgrade the performance and aesthetics of your BMW X5 or X6 with high-quality 15mm or 16mm wheel spacers from Burger Motorsports. These spacers are specifically engineered for E and F chassis BMW models, offering an instant improvement in wheel fitment, handling, and stance.
Designed to push your wheels outward for a more aggressive, planted look, these hub-centric spacers improve lateral grip and provide added clearance for aftermarket suspension, wheels, or big brake kits. Whether you're after a more muscular appearance or a functional upgrade, BMS spacers deliver exceptional performance.
Each set is CNC-machined from premium 7075-T6 aluminum and anodized black for durability and corrosion resistance. Included in the kit are 10 extended 10.9-grade lug bolts and a packet of anti-seize grease for smooth future removal.
Note: These spacers are only compatible with E and F chassis BMW X5/X6 models. Not compatible with the E53 X5. G Chassis owners should use G-specific spacers. Use 16mm spacers for xDrive and M models due to the taller factory hub.
Key Features:
-
CNC-machined 7075-T6 anodized black aluminum spacers
-
Includes 10 extended 10.9-grade zinc-coated lug bolts
-
100% hub-centric with factory-style center lip
-
Designed exclusively for E/F chassis BMW X5 & X6 models
-
Provides enhanced stance, wheel well fill, and improved handling
-
Pry tabs on the rear side for easy spacer removal
-
Lightweight yet strong solid construction
-
Guaranteed for the life of your vehicle
Spacer Specifications:
-
Widths Available: 15mm or 16mm
-
Center Bore: 74.1mm
-
Bolt Pattern: 5x120
-
Thread Size: M14 x 1.25
-
Bolt Seat: Cone seat
-
Material: 7075-T6 anodized aluminum
-
Included Hardware: 10 extended lug bolts (10.9 grade), 1 anti-seize packet
Vehicle Fitment:
Only for BMW E & F Chassis (X5/X6):
X5 Models:
-
2007–2013 E70 X5 3.0si, 4.8i, xDrive30i, xDrive35d, xDrive35i, xDrive48i (Non-M)
-
2014–2018 F15 X5 sDrive35i, xDrive35d, xDrive35i, xDrive50i
-
2014–2018 F85 X5M
X6 Models:
-
2008–2014 E71 X6 3.0si, 4.8i, xDrive30i, xDrive35d, xDrive35i, xDrive48i (Non-M)
-
2015–2020 F16 X6 sDrive35i, xDrive35i, xDrive50i
-
2016–2019 F86 X6M
Installation Tip: Use a ruler to measure how far you want the wheel to extend from the fender, then select the appropriate spacer size (15mm or 16mm). Installation is straightforward—just remove the wheel, fit the spacer on the hub, and reinstall the wheel using the included bolts.
What’s Included:
-
2x Wheel Spacers (15mm or 16mm)
-
10x Extended Lug Bolts (10.9 Grade)
-
1x Packet of Anti-Seize Grease

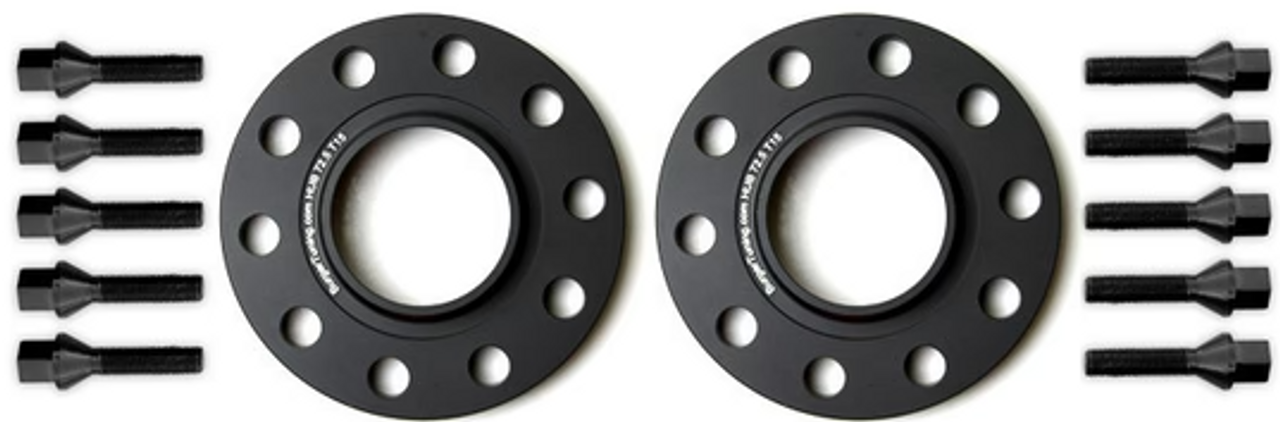

Burger Tuning F Chassis BMW Wheel Spacers w/10 Bolts
Order link:
Designed specifically for BMW F Chassis platforms, these spacers push your wheels outward for a more aggressive, flush look while improving lateral handling and making room for aftermarket suspension, larger brake kits, or wheel offset corrections.
Constructed from CNC-machined 7075-T6 aluminum alloy and anodized in black for corrosion resistance, these spacers are built to last. Each kit includes two hub-centric spacers and 10 extended 10.9-grade lug bolts – ensuring vibration-free operation and secure installation. Also included is a packet of anti-seize grease for future removal convenience.
Whether you're aiming for a performance-driven stance or eliminating clearance issues, Burger Motorsports spacers offer a dependable, vehicle-specific solution.
Key Features:
-
CNC machined from lightweight 7075-T6 aluminum alloy
-
Anodized black finish for corrosion protection
-
Sold as a pair (2 spacers) with 10 extended 10.9 grade lug bolts
-
Hub-centric design ensures a vibration-free, OEM-quality fit
-
Available in 10mm*, 12mm, 15mm, 18mm, 20mm widths
-
Includes anti-seize grease for easy future spacer removal
-
Designed specifically for BMW F Chassis applications
-
Built-in pry tabs for simple removal without damaging components
-
Guaranteed to fit and perform for the life of your vehicle
-
Compatible with xDrive (AWD) BMW models
Spacer Sizing Advisory:
-
Spacer width is based on personal preference and desired stance.
-
Use a ruler from the top of the fender arch to determine how far out you want your wheel to sit.
-
Important Note for 2012–2018 BMW F30/F31: The rear hub is too tall for 10mm spacers. Use a minimum of 12mm in the rear. The front can accept any size.
Always measure your vehicle before selecting spacer size. Your results may vary depending on wheel, tire size, suspension, or offset.
Specifications:
-
Center Bore: 72.6 mm
-
Bolt Thread Size: M14 x 1.25
-
Bolt Seat: Cone seat / concentric
-
Bolt Pattern: 5x120
-
Wheel Fasteners: 10.9 grade zinc-coated extended lug bolts
-
Material: 7075-T6 anodized black aluminum
-
Torque Spec: 105 ft-lbs (142 Nm)
-
Re-torque after 50 miles of driving
What’s Included:
-
(2) CNC-machined wheel spacers
-
(10) Extended 10.9-grade lug bolts
-
(1) Packet of anti-seize lubricant
Fitment:
Compatible with the following BMW F Chassis models:
-
1 Series
F20, F21, F40 (2011–Present) -
2 Series
F22, F23 Coupe & Convertible (2014–Present)
F87 M2 (2016–2022) -
3 Series
F30, F31 Sedan/Wagon (2012–2017)
F80 M3 (2015–2019) -
4 Series
F32, F33, F36 Coupe, Convertible, Gran Coupé (2014–2019)
F82 M4 (2014–2019) -
5 Series
F10, F11 including F10 M5 (2011–2017)
(Note: 2018+ F90 M5 requires G Chassis spacers) -
6 Series
F12, F13, F06 Gran Coupé including M6 (2012–2017) -
7 Series
F01, F02 (2008–2015) -
8 Series
(Note: 2020+ F91, F92, F93 M8 requires G Chassis spacers) -
X1
F48 (2015–2020) (requires G chassis spacers) -
X2
F39 (2017–2020) (requires G chassis spacers) -
X3
F25 (2011–2017) -
X4
F26 (2014–2018)
Bolt Length Notice:
Do not mix up included bolts. Each bolt set is specific to the spacer thickness. The bolts are longer than OEM by the exact thickness of the spacer.
Upgrade your BMW’s stance, performance, and appearance with the Burger Motorsports F Chassis Wheel Spacers – the perfect balance of engineering precision, durability, and style.
