Description
If you're a proud owner of a 2020+ B58 Toyota Supra GR MK5, you probably know that the B58 turbo motors can suffer from oil control problems. This can cause the oil to blow through and coat the intercooler, charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and degrading engine performance. The higher the boost levels, the more apparent these problems become. But now, the solution to this problem has finally arrived in the form of the BMS Turbo Double Baffle Oil Catch Can.
The BMS Oil Catch Can is specifically designed for the turbo B58 application, and it's guaranteed to keep your engine clean and efficient. Unlike other catch cans on the market, the BMS oil catch can kit is made from 100% CNC machining with zero welding, providing a precision fit and long life. The hoses exceed the OEM PCV piping in diameter and maintain flow rate throughout the entire oil catch can, ensuring no excessive crankcase pressure buildup. The BMS OCC retains the factory fully closed loop PCV operation, preventing any PCV vapor from leaking to the atmosphere.
This oil catch can features an internal baffle system that ensures maximum oil separation and a drain valve that makes it easy to dispose of captured oil during oil changes. The mounting locations are selected to minimize the line length, allow more efficient operation, and retain a stealth look. Installing the BMS Turbo Double Baffle Oil Catch Can takes around 20 minutes, and it includes all required hardware. Plus, it's 100% reversible.
By using the BMS Turbo Double Baffle Oil Catch Can, you'll prevent oil from blowing through your engine's air intake system, keeping your engine clean and efficient. You'll also prevent gunk buildup on your intercooler and charge piping, and improve the overall performance of your engine. This product is made in the USA and requires either the BMS Supra Intake to fit or the BMS B58 intake muffler delete to make room needed for the can. Get your BMS Turbo Double Baffle Oil Catch Can today and keep your engine running smoothly!
FEATURES AND BENEFITS
• Increases Air Intake Efficiency
• Promotes Engine Longevity
• Non-Clogging Air/Oil Separation Double Baffle
• Free Flow Solid No Restriction Design
• Retains factory fully closed loop PCV operation
• Large Intake/Outlet No Tapering Down
• Anodized Black Aluminum
• Made in the USA & Guaranteed for Life
• Simply unscrew base every 3-6 months to empty or use the 1/8th NPT drain plug.
• Non-Clogging, No Service Needed Air/Oil Separation Double Baffle
• High flow to eliminate crankcase pressure caused by more restrictive designs
• Large 16mm+ inlet and outlet exceeds OEM PCV sizing
• Precision CNC Machined from Solid Blocks of High-Grade Aluminum
Vehicle Fitment
Toyota Supra
• 2020+ Toyota Supra GR MK5 (B58 engine only)

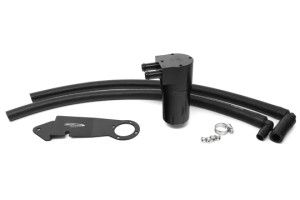

KIT INCLUDES
(1) BMS N54 Oil Catch Can
(1) Billet B58 bracket
(1) 90º billet fitting/nipple
(1) Custom Silicone inlet hose
(1) 3.5" Straight hose
(2) Stainless steel bracket screws #10-32 x 1/2" internal hex socket head
Kit for factory intake includes the BMS B58 intake muffler delete
DIMENSIONS
Can dimensions with lid: 4.4" (111mm) Tall
Can Diameter: 2.7" (68.5mm)
Lid Length: Back to nozzle end: 4" (101mm)
Nozzle Outer Diameter: .75" (19.2mm)
Nozzle Inner Diameter: 0.669" (17mm)
Can Capacity: 2.5 oz (74 ml)
