Description

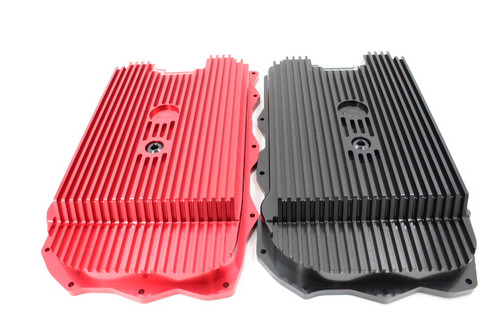

Elevate the performance and durability of your ZF8HP 8-speed transmission with the VTT Billet Aluminum Transmission Pan. This high-quality upgrade replaces the factory plastic or cast aluminum pan with a robust 6061-T6 aluminum pan, available in a range of anodized colors. The new design increases fluid capacity to 5.7 quarts, compared to the stock pan’s 3.7 quarts, ensuring better cooling and extended service intervals.
Key Features:
- Billet Construction: Made from 6061-T6 aluminum for superior strength and longevity.
- Increased Fluid Capacity: Expands to 5.7 quarts (5450ml) from the stock 3.7 quarts (3500ml) for enhanced performance.
- Improved Cooling: Machined external fins aid in heat dissipation.
- Rare Earth Magnet: Located under the filter to capture metal particles and support filter performance.
- Reusable Viton Gasket: US-made gasket designed for durability and ease of servicing.
- Magnetic Drain Plug: -6 ORB drain plug simplifies maintenance and helps keep the fluid clean.
What’s Included:
- 1 Billet Aluminum Transmission Pan
- Optional OEM Filter Kit
Fitment Guide:
Fits most small or mid-frame ZF8HP transmissions, including:
- G8X: M3/M4
- F9X: X3M/X4M, M5, M8
- A90/A91 Supra
- G3X
- G2X
Please Note:
- Clearance: No increase in clearance for G8X, X3/4M, or F90 M5 models. For smaller ZF8HP models with plastic pans, the billet pan fits but may have reduced clearance.
- Non-Fitment: Does not fit large frame 8HP transmissions such as Trackhawk, Hellcat, or TRX. Future models for these applications are planned.
